Description

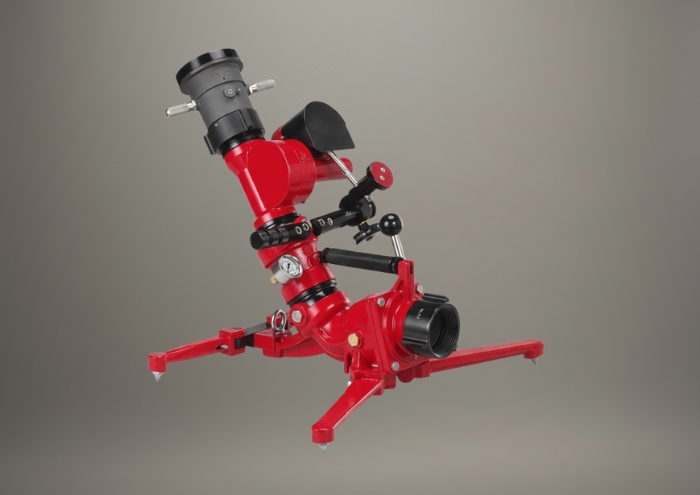

Portable water pump monitor with nozzle, designed for use by firefighters during emergency response. Made of highly durable aluminum.
Painted in corrosion-resistant red.
Portable monitor 625 self-oscillating: With adjustable flow rates of 660-850-1325 and 1900 l/min, with a Barcelona fitting in stamped aluminum, hard anodized, Ø 70 mm according to UNE 23.400-3. Weight: 13 kg without lance. Optimal pressure: 7 bar. Maximum pressure: 10 bar. Range: 55 m at maximum pressure.
Monitor Lance MOD.824. Flow rate 950 – 1420 – 1900.
Characteristics
This portable oscillating monitor offers multiple flow rates for attacking, cooling, or protecting in hazardous materials situations. The spray pattern is adjustable from wide to cone to jet.
It has a lever-operated opening and closing valve to completely shut off the water flow.
The hydraulic turbine effectively sweeps the operating area with a smooth yet powerful motion, automatically. The turbine causes the lance to oscillate between 12.5°, 15°, 20°, and 25° on either side of the center.
It has a lever to stop the oscillation at any point. The oscillation mechanism can be disconnected. Horizontal rotation can be done manually.
The oscillation speed is as follows (with lance and jet position):
| CYCLES PER MINUTE |
FLOW RATE (lpm) |
| 8 |
660 |
| 11 |
850 |
| 22 |
1325 |
| 25 |
1900 |
The lift is adjustable between 30 and 60 degrees in the automatic position.
It can go down to 20 in manual position.
With built-in pressure gauge. Its large handle makes it very easy to handle.
It grips the floor thanks to the tungsten carbide spikes on the legs, which provide the monitor with better traction and greater stability. The legs are foldable so the monitor can be carried, set up, and used by a single user. It's also perfect for storing in a truck. It offers stable performance.
It is very easy to install and use. It has simple, visible, and durable indicators for easy operation.
