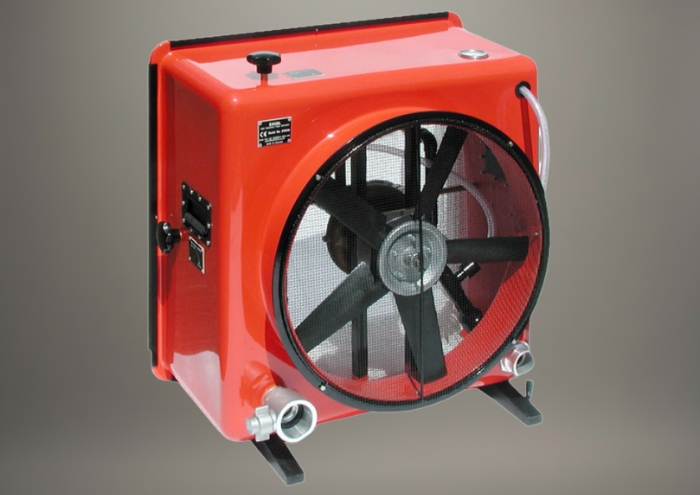

EXCEL HIGH EXPANSION FOAM GENERATOR

Description

Made of orange, reinforced fiberglass. The pipe and fittings are corrosion-resistant.

Applications

Ideal for total flooding applications in warehouses, ship holds, engine rooms, and other inaccessible enclosed spaces. The use of expanded foam minimizes water damage and achieves rapid extinguishing times.

Powered by a water turbine, it is suitable for use in hazardous areas such as chemical plants, refineries, ships, aircraft, nuclear power plants, and of course, mines. It can be used to extinguish spilled liquefied gas fires, suppress toxic or flammable vapors caused by spills, and render the environment inert in tanks.

Characteristics

Each unit is delivered with 30 m of expandable polyethylene foam.

A dual-use fume extraction version and a 7.5 m hose for this function can be supplied as an option.

Flow rate 285 m3/minute.

Gas thread inlet and outlet 1 ^½».

DIVERSION CONTROL	WATER PRESSURE	TOTAL WATER FLOW	WATER FLOW TO THE DIVERSION (l/min)	WATER FLOW TO THE NOZZLES	FOAM PRODUCED (m³/min)	FOAM EXPANSION
OPEN	4	205	60	145	100	750 to 1200
	7	285	90	195	156
	10	330	105	225	220
CLOSED	4	190	–	190	85	450 to 850
	7	260	–	260	145
	10	310	–	200	200
