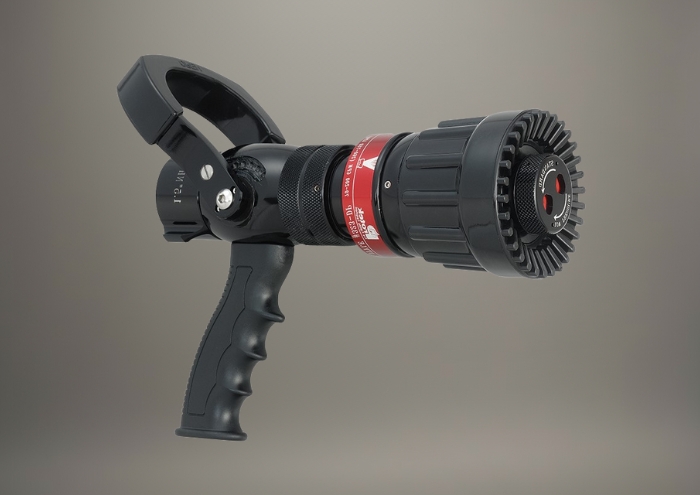

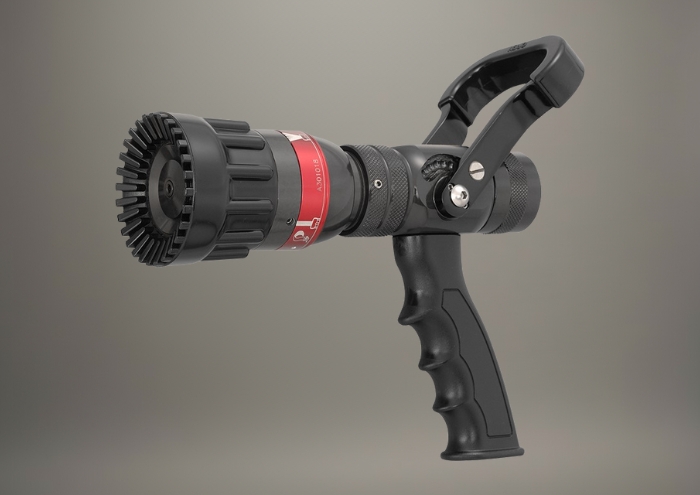

Specially designed and manufactured nozzles to optimize water consumption in firefighting operations. The 25 mm diameter nozzle with the lowest flow rate is especially suitable for fighting forest fires due to its low water consumption; however, there is another version with a higher flow rate for fires in urban areas.
DESCRIPTION
Made from ultralight aluminum with a STARLITE anodized treatment.
Smooth movement of the opening and closing lever, even at high pressures, by means of a ball valve; when closed it comes into contact with a Teflon piece that prevents dripping caused by solid particles when it is in that position.
Large, sturdy handle with an ergonomic design that fits perfectly to the contour of the hand.

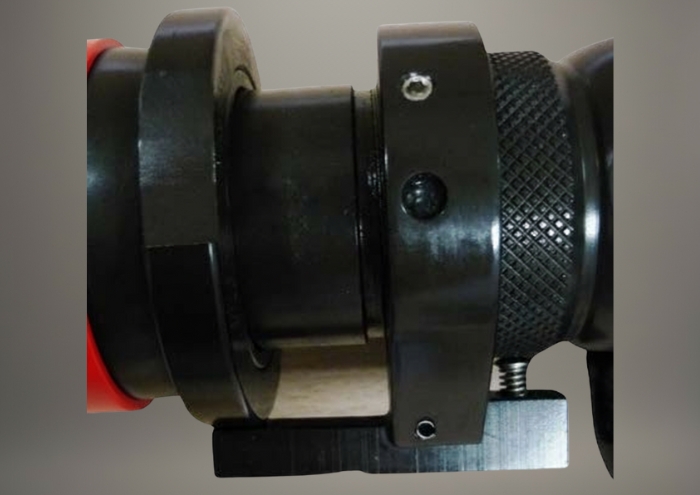

Rotating piece at the connection of the fitting with the lance and stainless steel protective mesh to prevent the entry of objects that could impede the operation of the lance. Flow selector: the flow rate can be varied without having to cut off the water flow.
It allows you to regulate the available flow at the nozzle tip, according to the preset positions marked on the crown. It also has a self-cleaning position, which avoids having to interrupt the water flow during firefighting operations.
Rotating stainless steel teeth to create an intense mist and obtain optimal user protection.
Red rubber protector to absorb impacts in case of a fall. It has longitudinal grooves that prevent slipping during handling and allow for comfortable use.
CHARACTERISTICS
Lightweight, ergonomic, reliable, and completely safe to operate. Designed to select different flow rates as needed. The Firestar nozzle is designed to work at both high (up to 40 bar) and low pressures, ensuring great agility in forest fires. The 4-stage anodized aluminum effect selector allows you to choose between a full jet, mist, and spray by rotating it.
Adjustable flow rates for different diameters of:
Ø 25 mm, two options:
Ref. 360: 19-37-90 and 150 l/m, weight 1.2 Kg.
Ref. 361: 50-100-150-230 l/m, weight 1.2 Kg.
They comply with EN 15182-4.
Ø 45 mm:
Ref. 366: 145-250-360 and 500 l/m, weight 1.6 Kg.
Ø 70 mm:
Ref. 368: 285-475-550 and 1,000 l/m, weight 2.5 Kg.
They comply with EN 15182-2. Other options for lances intended for industrial use:
Ø 45 mm:
Ref. 367: 360-475-550 and 750 l/m, weight 2.6 Kg.
Ref. 369: 115-230-360-475-550 and 750 l/m, weight 2.6 Kg.

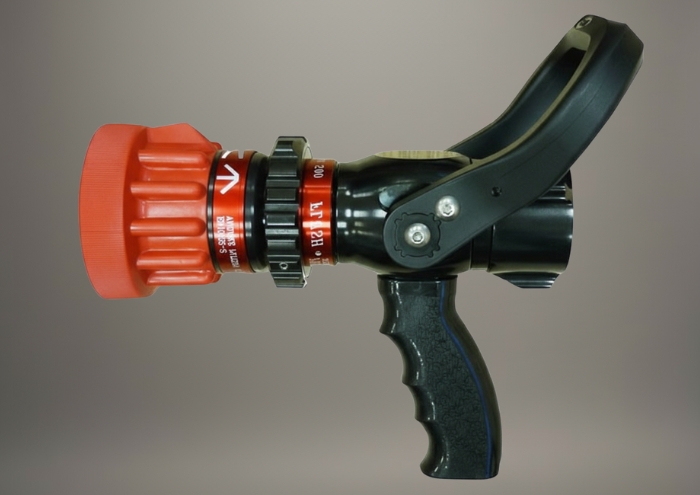

FIRESTAR AUTOMATIC
Specially designed and manufactured nozzles to maintain effective pressure, distance, and consistency of the jet, despite possible fluctuations in flow rate and for all lever positions during firefighting operations.
DESCRIPTION
Made from ultralight aluminum with a STARLITE anodized treatment.
Smooth opening and closing lever for regulating flow. Sliding valve control. Large, robust handle with an ergonomic design that fits perfectly in the hand. Rotating piece at the connection of the fitting to the lance and a stainless steel protective mesh to prevent the entry of objects that could obstruct the lance's operation. Fixed teeth for creating an intense mist and optimal user protection. Optionally available with rotating stainless steel teeth.
Rubber protector, to absorb impacts in case of a fall.
It has longitudinal grooves that, during handling, prevent slipping and allow for comfortable use.
CHARACTERISTICS
The effects selector allows you to choose between a full jet, mist, and spray by rotating it. It also has a self-cleaning position, which eliminates the need to interrupt the water flow during firefighting operations.
Jet blocking option for fires with electrical hazards.
“Dual pressure” option: possibility of adjusting two working pressures on the deflector: a standard one of 7 bar and a low one of 5 bar.
FLOW RATES
Ø 25 mm:
Ref. 321: From 40 to 475 l/m, weight 1.4 Kg.
Ø 45 mm: Two options:
Ref. 322: From 40 to 475 l/m, weight 1.4 Kg.
Ref. 323: From 265 to 750 l/m, weight 2.3 Kg.
Ref. 323-DP: From 265 to 750 l/m, weight 2.3 Kg.
Ø 70 mm:
Ref. 324: From 190 to 1,325 l/m, weight 3.4 Kg.

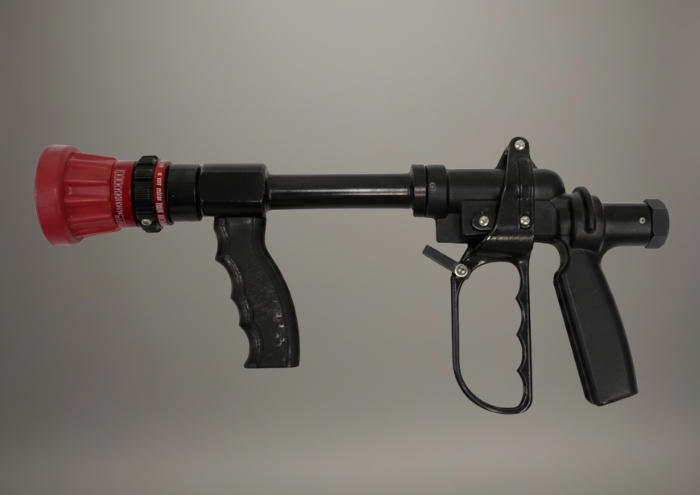

FIRESTAR FOR FIRST RELIEF REEL
Specially designed and manufactured nozzles to optimize water consumption during firefighting operations. They are used with the first aid hoses of fire engines.
DESCRIPTION
Made from ultralight aluminum with a STARLITE anodized treatment.
Rotating piece at the connection of the fitting to the lance.
Rotating stainless steel teeth to create an intense mist and obtain optimal user protection.
Red rubber protector to absorb impacts in case of a fall.
It has a control that, when pressed back, allows the water flow to pass, and when released, stops it. For situations requiring prolonged operation, it has a rotating piece incorporated into the control; when turned and made to rest against the lance body, it allows the water flow to be continuous. Simply turn it back to return it to the normal (closed) position.
CHARACTERISTICS
Designed to select different flow rates according to needs.
The Firestar lance is designed to work at high pressures (up to 48 bar).
Effects: jet, spray and mist.
Flow rate: Ref. 302: 50-90 and 115 l/m, weight 2.1 Kg.

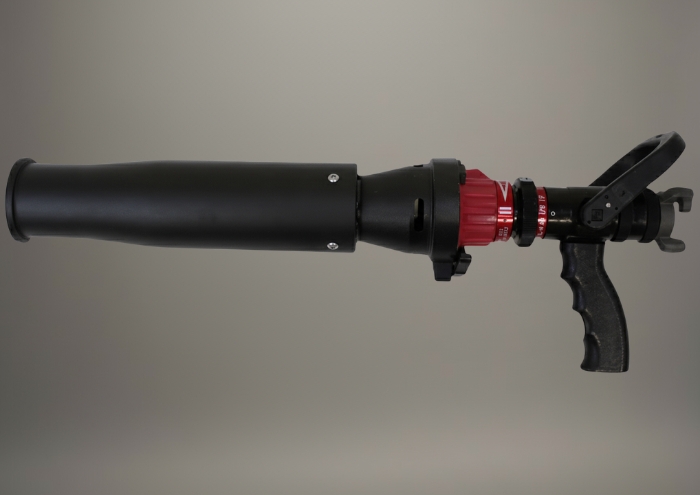

FOAM ACCESSORIES
Accessory that attaches to the head of the Firestar lance to generate foam.
DESCRIPTION
Made from ultralight aluminum.
CHARACTERISTICS
It is used with Firestar nozzles in Ø 25 mm, Ø 45 mm, and Ø 70 mm diameters. It produces high-quality, stable foam and is compatible with all foam concentrates.
Expansion ratios between 8:1 and 14:1
AFTER-SALES SERVICE
The after-sales service is efficient because we have a permanent stock of accessories and spare parts, as well as qualified technical personnel to repair these lances.
