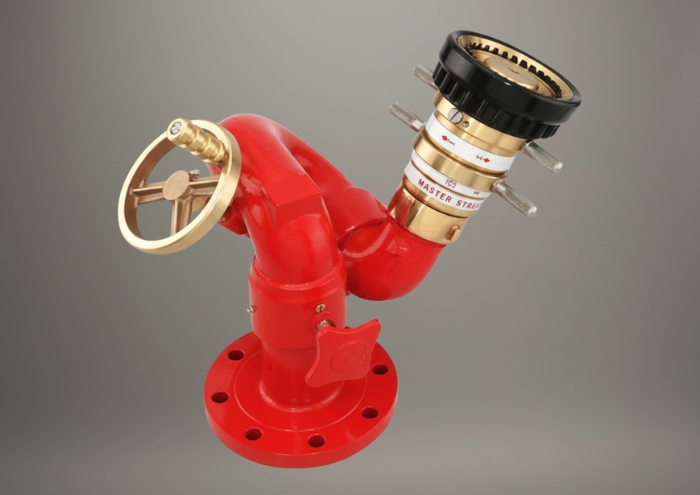

Description
Corrosion resistant, constructed of brass.
3″ tube that allows a flow rate of 4,800 L/min.
By having a single water conduction pipe, minimal pressure loss is achieved.
Highly maneuverable and easy to operate. Control via individual steering wheel.
Double-row stainless steel ball bearings in all rotating joints.
It allows movements of 360º horizontally and 140º vertically (85º above the horizontal and 55º below the horizontal).
Very compact and resistant.
Red.
It does not have drainage.
Inlet options: 3” – 4” flange – 3” female thread.
Approved FM.
| MODEL | LANCE CONNECTION THREAD | LENGTH | WIDTH | WEIGHT | CAUDAL |
| 611 | Gas 2.5″ male | 43 cm. | 38 cm. | 26 kg. | 4800 l/min. |
