FLEXIGOM® PU WATER

PU hose extruded in a single process, ideal for use with drinking water thanks to its NSF-approved PU.

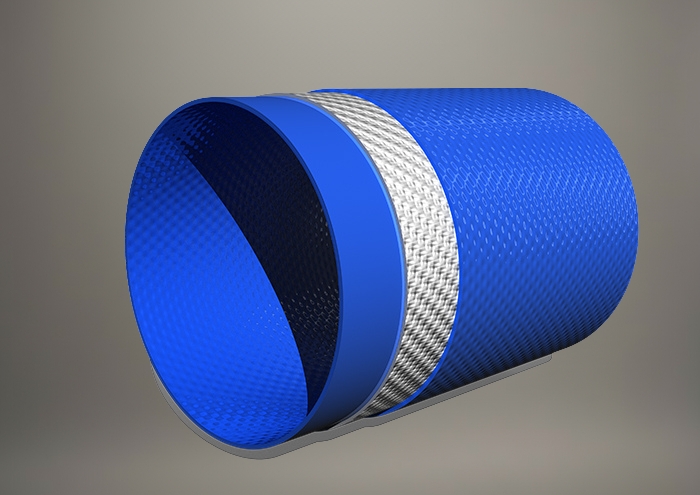

Construcción de FLEXIGOM® PU AGUA

  • Inner and outer layer:
    • Extruded thermoplastic polyurethane. Minimal pressure loss thanks to its smooth interior wall. Blue color. Glossy, streak-free surface.
  • Intermediate textile reinforcement:
    • Jacket made on a circular loom with high-tenacity polyester yarn. Free of defects such as broken threads, knots, etc.

Prestaciones de FLEXIGOM® PU AGUA

  • Excellent resistance to abrasion and intensive use by professionals.
  • High resistance to oils, gasoline and a wide range of chemicals.
  • Very resistant to heat, both contact and radiant heat.
  • Lightweight and flexible hose, even at low temperatures (-15°C). Easy to handle and roll.
  • High resistance to breakage thanks to its special textile construction.
  • No maintenance or drying required.

Usos de FLEXIGOM® PU AGUA

  • Agriculture.
  • Replacement of rigid pipes in wells.
  • Drinking water transfers and pipeline bypasses.
  • Civil works.
  • Special high pressure processes.

Características Técnicas de FLEXIGOM® PU AGUA



DIAMETER COLOR BREAKING
PRESSURE
​
WORKING
PRESSURE
​
WEIGHT THICKNESS TRACTION
in. mm bars bars kg/m in. mm lbs kg
1 1/3″ 32 BLUE 80 27 280 0,087 2,2 5.732 2.600
2″ 51 BLUE 50 17 475 0,090 2,3 8.598 3.900

Documentación de FLEXIGOM® PU AGUA

Gold metallic PDF file icon with download arrow

Technical sheet
