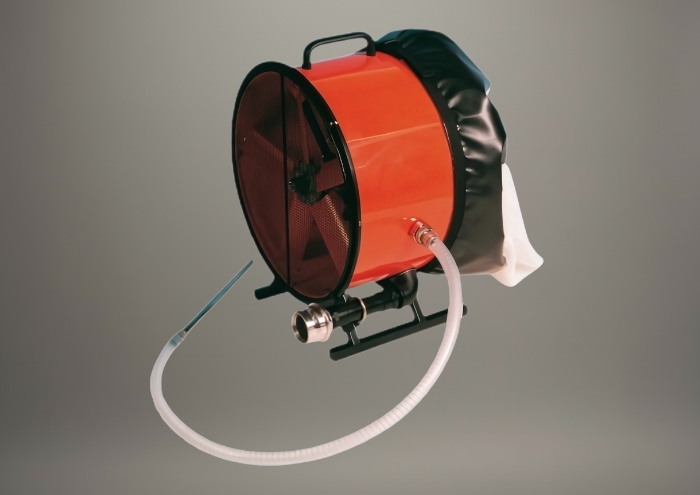

HIGH EXPANSION FOAM GENERATOR MINI EXCEL

Description

Made of orange corrosion-resistant materials.

Turbine built in bronze.

With autoinduction.

Applications

Suitable for all types of foam flooding operations, hazardous vapor removal, and particularly suitable for use in warehouses, hangars, ship holds, cable ducts, machinery spaces, waste recycling sites, etc.

The weight-to-performance ratio makes it ideal for rapid deployment in emergency situations. Its compact size allows it to be easily stored in emergency vehicle cabinets.

Powered by a water turbine, it is suitable for use in hazardous areas such as chemical plants, refineries, ships, aircraft, nuclear power plants, and mines.

Characteristics

Normal operation between 3 and 10 bar.

^½” male gas thread inlet

Dimensions:

Length 350 mm.
Width 500 mm.
Height 650 mm.

Weight: 15 kg.

FLOW RATE (l/min)	FOAM CONSUMPTION (l/min)	%	FOAM EXPANSION	FOAM PRODUCTION (m³/min)
5 bar – 225	5 bar – 4.5	2	5 bar – 400	5 bar – 90
6 bar – 247	6 bar – 4.9		6 bar – 425	6 bar – 105
7 bar – 265	7 bar – 5.3		7 bar – 450	7 bar – 119
