General specifications
The new PM-L foam lance design is engineered to expand and accelerate the foam at high speed, producing superior range compared to older designs. They are designed to fit our proportioners and equivalent models.

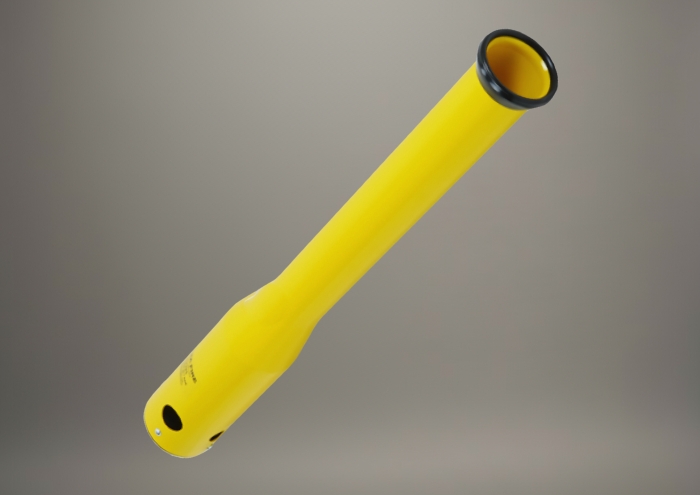

LOW EXPANSION FOAM LANCES
Construction
Body in light alloy or stainless steel (for the marine version). Finished in international orange epoxy-polyester.
Inlet: 2″ BSP male.
Auto Induction for models PM-LA 225 and PM-LA450. Models with auto induction are supplied with a stainless steel-tipped immersion tube connected to the lance and opening/closing valves.
| MODEL | FLOW RATE (l/min) | WORKING PRESSURE | EXPANSION | RANGE (m) at 7 bar | AVERAGE LENGTH (mm.) | WEIGHT (kg.) |
| PM-L225 | 200 | 5 | 6-10 | 18-22 | 740 | 2,2 |
| PM-LA225 | 225 | 7 | ||||
| PM-L450 | 400 | 5 | 6-10 | 20-24 | 880 | 2,6 |
| PM-LA450 | 450 | 7 | ||||
| PM-L900 | 800 | 5 | 6-10 | 22-26 | 1010 | 3,0 |
| 900 | 7 |
