Description
Constant flow fire lances, with easy continuous adjustment of effects: shut-off, direct jet, spray and mist, by rotating the lance head from 0° to 120°.
NAVY SPEARS
Constant flow fire lances, with easy continuous adjustment of effects: shut-off, direct jet, spray and mist, by rotating the lance head from 0° to 120°.

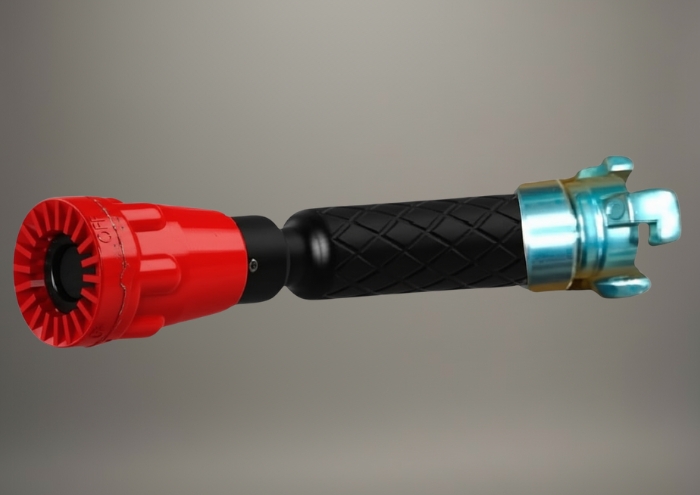

MARINE SPEAR MED 1" M
CHARACTERISTICS
- Easy handling.
- Lightweight.
- Total resistance to corrosion by seawater.
- Simple design makes it maintenance-free.
- Smooth head rotation makes it very easy to use.
MATERIALS
- Body: Anodized aluminum alloy.
- Rubber protector.
| TYPES AND DIMENSIONS | THREADED INLET | LENGTH | EITHER | WEIGHT |
| MED 1″ M LANCE | 1″ male | 234 mm. | 56 mm. | 0.700 kg. |
MED 1” lances can be supplied with Barcelona fittings or other international fittings (Storz, Guillemin, BS, etc.)
CERTIFICATE
The lances are certified according to EN 15182 MED.

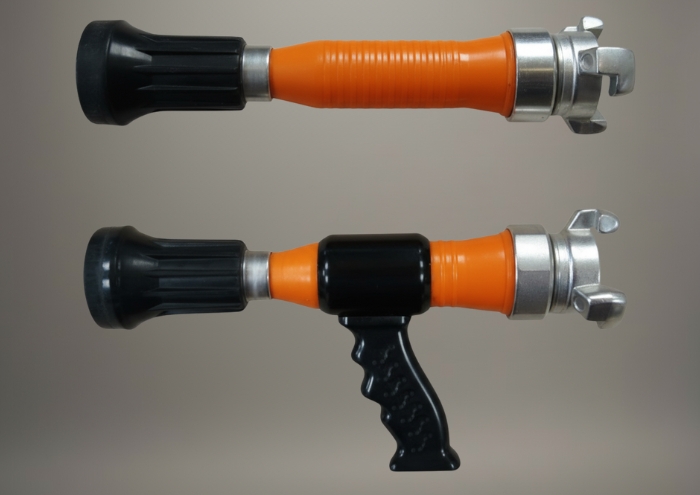

NAVY SPEARS MED 2" M
CHARACTERISTICS
- Minimum pressure loss.
- Maximum working pressure: 16 bar.
- Flow setting at 6 bar:
- 230 lpm (full jet).
- 460 lpm (spray jet).
MATERIALS
- Head: Rubber (NBR), brass and chrome plated.
- Body: Impact resistant POM polyurethane.
| TYPES AND DIMENSIONS | THREADED INLET | LENGTH | EITHER | WEIGHT |
| MED 2″ M LANCE | 2″ male | 307 mm. | 75 mm. | 0.800 kg. |
| MED 2″ M LANCE with handle | 2″ male | 307 mm. | 175/75 mm. | 1,450 kg. |
The MED 2” lances with and without handle can be supplied with a Ø45mm or Ø70mm Barcelona fitting, or other international fittings (Storz, Guillemin, BS, etc.).
CERTIFICATE
The lances are certified according to EN 15182 MED.
Documentation
Technical sheet
