Description
Steel structure with a corrosion-resistant impregnation.
Solid wheels.
130 l orange fiberglass foam tank.
It can be used with all types of foams.

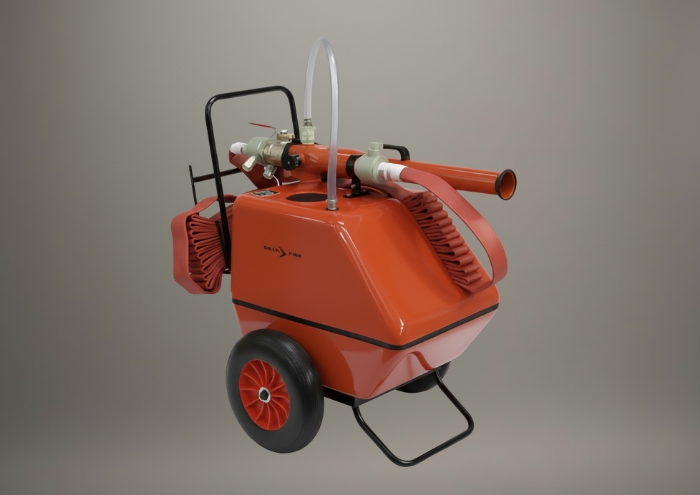

PM FOAM CART
Steel structure with a corrosion-resistant impregnation.
Solid wheels.
130 l orange fiberglass foam tank.
It can be used with all types of foams.
Applications
It is designed to be operated by a single person and is capable of effectively protecting cargo terminals, paint warehouses, engine rooms, and any other location with high potential risk.
All you need is a pressurized water supply (minimum 180 lpm at 5 bar) and a foam tank containing a concentration of foam.
Characteristics
The estimated foam output is approximately 34,000 liters, with an actual operating time of over 20 minutes. It is supplied with a PM-Z225 proportioner, a PM-L225 low-expansion lance, and an on/off valve.
Dimensions: 910 mm (length) x 710 mm (width) x 1020 mm (height). Weight: 70 kg (empty).
Complies with SOLAS MED regulations.
|
PRESSURE IN THE PROVIDER |
TOTAL FLOW
WATER |
PRODUCTION
FOAM |
TIME OF
WORK (min) |
SCOPE OF FOAM |
|
| bar | bpm | bpm | 3% | 6% | meters |
| 5 | 180 | 1800 | 22 | 11 | 14 |
| 6 | 197 | 1970 | 20 | 10 | |
| 7 | 213 | 2130 | 18 | 9 | 17 |
| 8 | 228 | 2280 | 17 | 8,5 | |
| 10 | 255 | 2550 | 16 | 8 | 20 |
Documentation
Technical sheet
