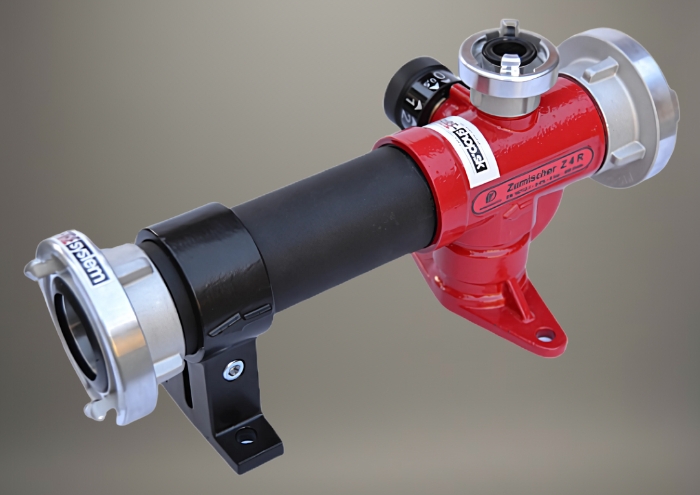

Description
PM-Z foam proportioners are a low-cost system by which foam is introduced into the water flow. They can be calibrated between 1% and 6%.
The standard model is made of corrosion-resistant materials.
PM-Z PROVIDER
PM-Z foam proportioners have a low-cost system by which the foam is introduced into the water flow.
Technical data
2″ thread connection for models PM-Z2 and PM-Z4 and 2 2 ½” for PM-Z8.
Construction
- Aluminum body.
- BYPASS in aluminum.
- Filter.
- High impact resistant plastic venturi.
- EN 16712-1
Technical Characteristics
| MODEL | FLOW RATE (l/min) | FOAM RATIO | WORKING PRESSURE (bar) | WEIGHT (kg) | WIDTH (mm) | LENGTH (mm) |
| PM-Z2 | 200 | 1 – 6% | 5 – 16 | 2,80 | 160 | 375 |
| PM-Z4 | 400 | 1 – 6% | 5 – 16 | 2,80 | 160 | 375 |
| PM-Z8 | 800 | 1 – 6% | 5 – 16 | 2,80 | 160 | 375 |
Documentation
Technical sheet
