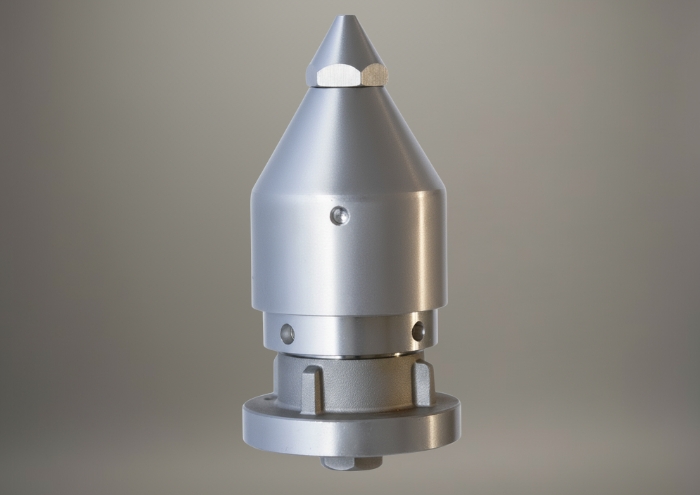

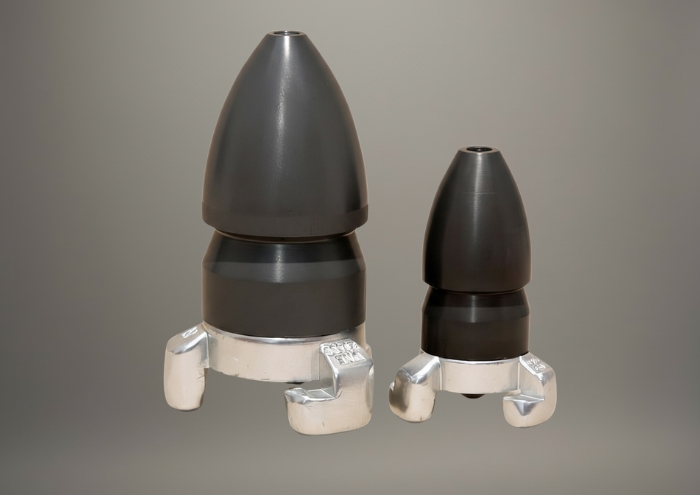

SEWER CLEANING LAUNCH

It is made of carbon steel and designed for use with a high-pressure hose, for cleaning pipes, sewers, etc.

Description

It is made of carbon steel and designed for use with a high-pressure hose, for cleaning pipes, sewers, etc.

They are mounted on the end of a hose and inserted into the blockage. They advance by means of the rear thrust drills, and break up the blockage by means of the front projector and the thrust of the bullet head against the blockage, thus achieving the effects of "breaking up" and dislodging any remaining debris.

Model 1

  • Number of rear drill holes: 5
  • Number of front drill holes: 1
  • Rear drill diameter: 2.5 mm.
  • Front drill diameter: 1.8 mm.
  • Feed inlet: 1” BSP internal thread.
  • Finish: Blackened.
  • Dimensions and weights: Length 84mm, Ø48, weight 575-580 grs (+connection fitting).
  • With Barcelona fitting Ø 25mm.

Model 2

It is made of steel and designed for use with a high-pressure hose, for cleaning pipes, sewers, etc.

  • Ø 2” male thread.
DIAMETER LENGTH WEIGHT
2″ 17 cm. 1.69 kg.

Documentation

Gold metallic PDF file icon with download arrow

Technical sheet
