Construction

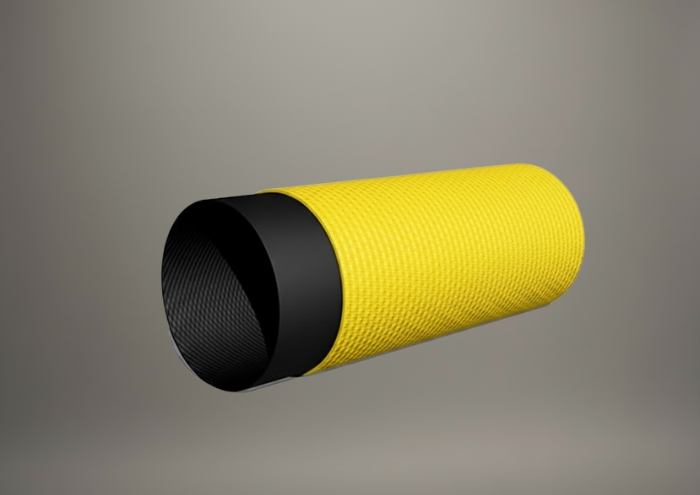

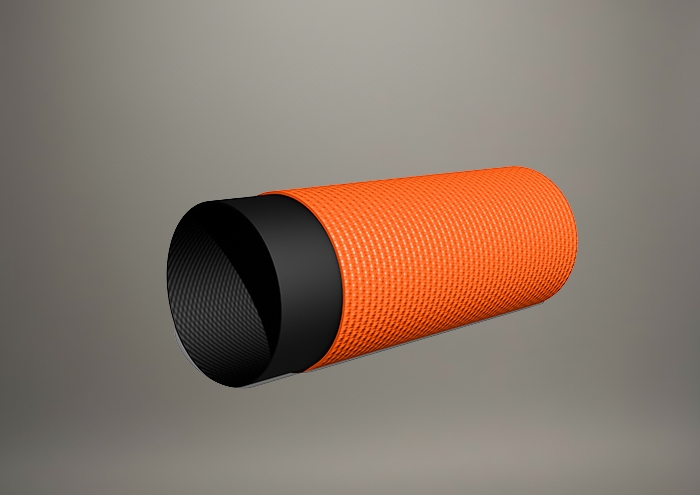

Stain or inner layer:
- Specially formulated black EPDM inner rubber. High resistance to temperature variations. Minimal pressure loss thanks to its smooth inner wall.
Outer fabric:
- Jacket made on a circular loom with high-tenacity polyester yarn. Twill weave with two stripes along the entire length of the sleeve. Free from defects such as broken threads, knots, etc.
- Color: Red or orange (depending on availability).

Benefits

Lightweight hose, its weight is 240 gr/meter.
Highly flexible hose with a large bending ratio without collapse. Bending radius of 400 mm.
Easy-to-handle, easy-to-move, and easy-to-pull hose. It glides easily across the floor by one person, and turns easily on stairs.
High-strength hose for continuous use on the final stretch of the exit. Its burst pressure of over 90 bar guarantees its safety.

Low pressure loss due to its specially formulated rubber interior. Smooth interior.
Its color makes it stand out from the rest, making it easy to locate.
With a high adhesion of over 40 N, which guarantees its durability and resistance. The greater the adhesion of the layers, the better the aging. It far exceeds the requirements of standard NF 61112.

It is supplied with hard-anodized aluminum fittings in red. It is connected using steel wire.

Corrosion-resistant stainless steel. RAL 3001 red color

DIAMETER		WEIGHT	THICKNESS	WORKING PRESSURE	BURST PRESSURE	TRACTION
in.	mm.	gr/m.	mm.	bars	bars	kg
1^1/2″	38	260	2,1	30	90	6000
