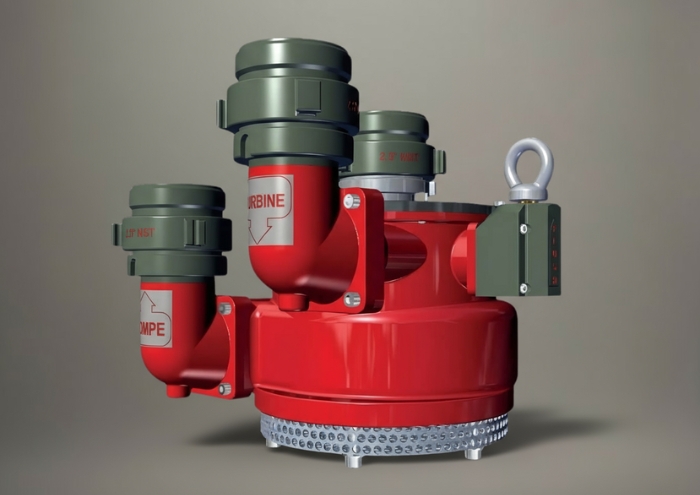

TURBOPUMP

It is designed to perform rapid and safe pumping and transfer operations. The machine operates through a closed water circuit driven by the turbine, which in turn transmits the motion to a second turbine connected to a shaft, which then evacuates the water to be transferred or pumped out. The turbopump is operated by a 70 mm diameter hose connected to the pump outlet of a fire truck or pumping unit; a second hose returns the clean water to the tank of the truck or pumping unit, without wasting any water. The liquid to be evacuated will exit through a third hose and will never mix with the water from the pumping source. It continues to operate without problems even when dry.

Description

It is designed to perform rapid and safe pumping and transfer operations. The machine operates through a closed water circuit driven by the turbine, which in turn transmits the motion to a second turbine connected to a shaft, which then evacuates the water to be transferred or pumped out. The turbopump is operated by a 70 mm diameter hose connected to the pump outlet of a fire truck or pumping unit; a second hose returns the clean water to the tank of the truck or pumping unit, without wasting any water. The liquid to be evacuated will exit through a third hose and will never mix with the water from the pumping source. It continues to operate without problems even when dry.

Applications

It is used by fire stations, industries, etc. It pumps large quantities of liquid without any consumption of driving water. It is very suitable for emptying basements and wells, as it does not emit gases, unlike conventional motor pumps. It is also useful for transferring liquids and emptying cisterns. It requires no maintenance except for routine cleaning after use and is equipped with a lifting ring and a drain valve.

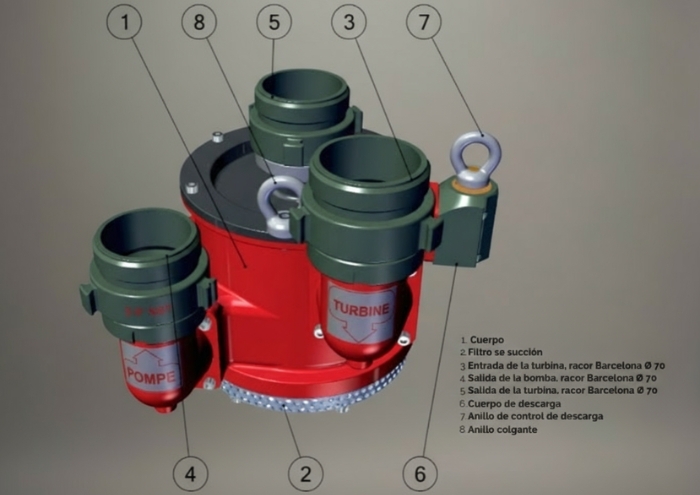

Construction

DESIGNATION DESCRIPTION
Turbopump body Aluminum alloy, polyester coating
Pump body Aluminum alloy, hard anodized
Strainer, rings and screws Stainless steel
Weight 11.56 Kg.

Hydraulic characteristics

DESIGNATION DESCRIPTION
Turbine flow rate 108 m³/h
Maximum working pressure 16 bars.
Test pressure 25.5 bars.
