FLEXIGOM® PU ANTISTATIC

Anti-static PU hose, 3 copper wires, extruded in a single process, suitable for explosive environments.

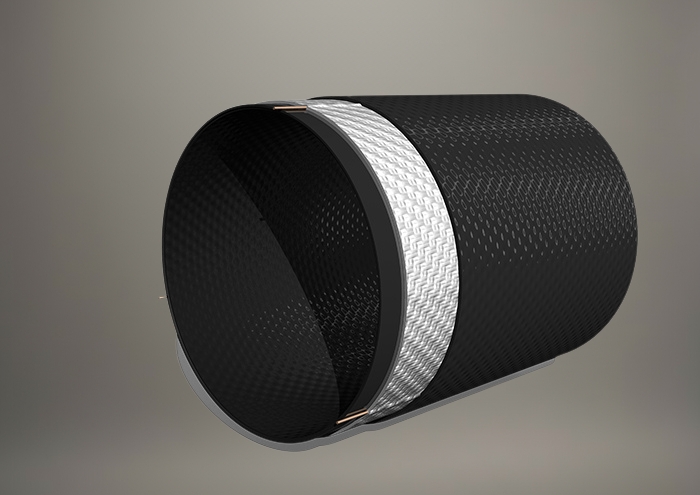

Construction

  • Inner and outer layer:
    • Extruded thermoplastic polyurethane. Minimal pressure loss thanks to its smooth interior wall. Black color. Glossy, streak-free surface.
  • Intermediate textile reinforcement:
    • Jacket made on a circular loom with high-tenacity polyester yarn. Free of defects such as broken threads, knots, etc.
    • Contains 3 copper wires to make it antistatic.

Benefits

  • Flexible and high resistance hose.
  • Flexible despite its anti-static properties.

Uses

  • Cleaning tanks with flammable products.
  • Transfer of liquids with risk of explosion.
  • Unloading of flammable chemicals.

Technical Characteristics



DIAMETER COLOR
BURST
PRESSURE​

WORKING
PRESSURE​
WEIGHT THICKNESS TRACTION
in. mm bars bars kg/m in. mm lbs kg
2″ 51 Black 70 21 0,52 0,10 2,60 13448 6100
3″ 76 Black 48 16 0,78 0,11 2,80 19180 8700
4″ 102 Black 52 17,5 1,04 0,11 2,79 27000 12150
5″ 127 Black 42 14 1,41 0,12 3,05 35000 15750
6″ 153 Black 42 14 1,71 0,12 3,05 38000 17000
8″ 203 Black 42 14 2,97 0,15 3,81 80000 36000
10″ 254 Black 42 14 4,30 0,16 4,06 110000 49500
