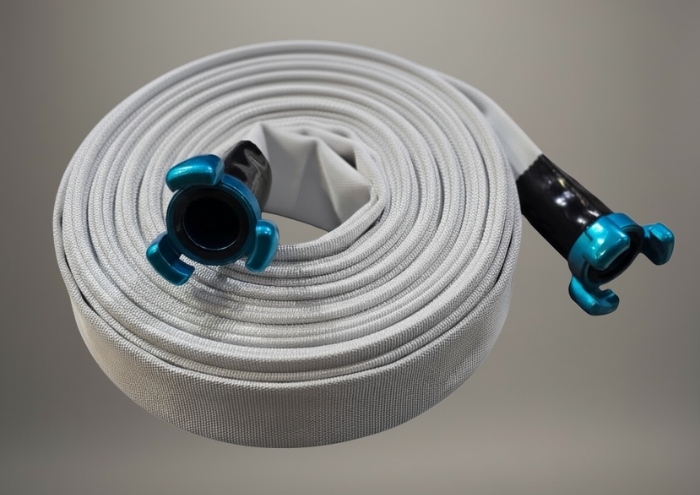

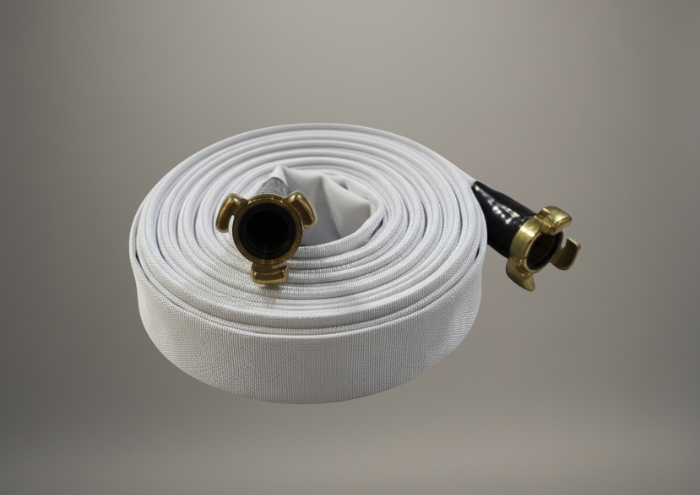

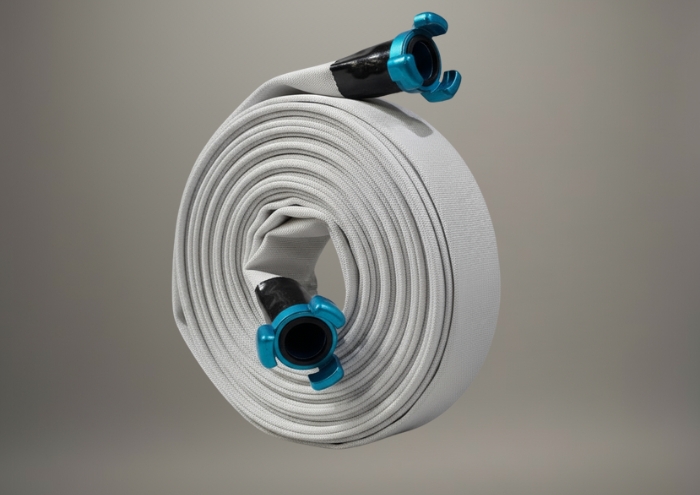

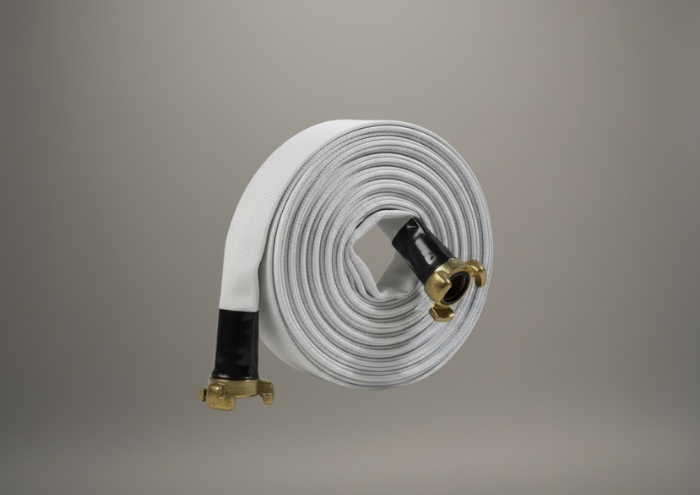

ATLAS®

High-performance single-jacket conventional hose.

Categories: , , , , ,

Construction

  • Inner stain:
    • Special shim made of thermoplastic synthetic materials.
      Minimal pressure loss thanks to its smooth walls.
  • Outer fabric:
    • Jacket made on a circular loom with high-tenacity polyester yarn.
      Plain weave as standard, twill option upon minimum order. Free from defects such as broken threads, knots, etc.

Benefits

  • Very light and flexible hose.
  • Easy to handle and roll.
  • Pressure resistant thanks to its circular loom construction.
  • Inner PU and/or synthetic rubber insert as options.
  • Custom marking under minimum order.
  • Available with various international approvals.

Uses

  • Fire cabinets.
  • Firefighters and Industry in light processes.
  • Construction.
  • Emergency pumping.
  • Forest.

Technical Characteristics

DIAMETER WEIGHT
WORKING
PRESSURE​
TEST
PRESSURE​
BURST
PRESSURE​		 CERTIFICATIONS
in. mm. gr/m. bars bars bars
1″ 25 170 30 60 >90
11/2″ 38 220 18 37 >55 MED
12/3″ 42 240 18 37 >55
13/4″ 45 240 18 37 >55 MED
2″ 52 290 18 37 >55 MED
21/2″ 64 400 18 37 >55
23/4″ 70 430 16 32 >48
3″ 75 490 15 30 >45
4″ 102 700 15 30 >45
41/3″ 110 800 13 27 >40
5″ 125 1.050 12 24 >35
6″ 152 1.400 12 24 >35
8″ 204 1.600 12 24 >35

Documentation

Technical sheet
