ATLAS®-CR FORESTAL

Special single-jacket hose with lightweight PU coating, suitable for forestry services.

Categories: , ,

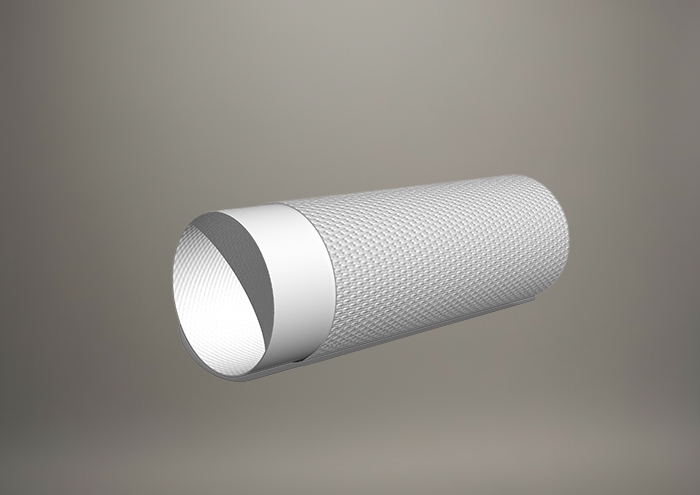

Construction

  • Inner stain:
    • Special white polyurethane stain. Minimal pressure loss thanks to its smooth walls.
  • Outer fabric:
    • Jacket made on a circular loom with high-tenacity polyester yarn. Lighter woven fabric. Free of defects such as broken threads, knots, etc.
  • Exterior coating:
    • Transparent PU-based emulsion.

Benefits

  • Extra-light and flexible hose even at low temperatures (-15ºC).
  • Easy to handle and roll.
  • High resistance to the passage of chemicals thanks to the special composition of the inner stain.
  • Pressure resistant thanks to its circular loom construction.
  • High resistance to ozone thanks to its outer coating, which also improves abrasion.
  • Available with various international approvals.

Uses

  • Suitable for forestry use.

Technical Characteristics

DIAMETER WEIGHT
WORKING
PRESSURE​

TEST
PRESSURE​

BURST
PRESSURE​
CERTIFICATIONS
in. mm. gr/m. bars bars bars
1″ 25 120 25 50 >75
11/2″ 38 170 25 50 >75

Documentation

Technical sheet
