ATLAS® SUPRA

Conventional single jacket hose, twill weave with NFS approval.

Categories: ,

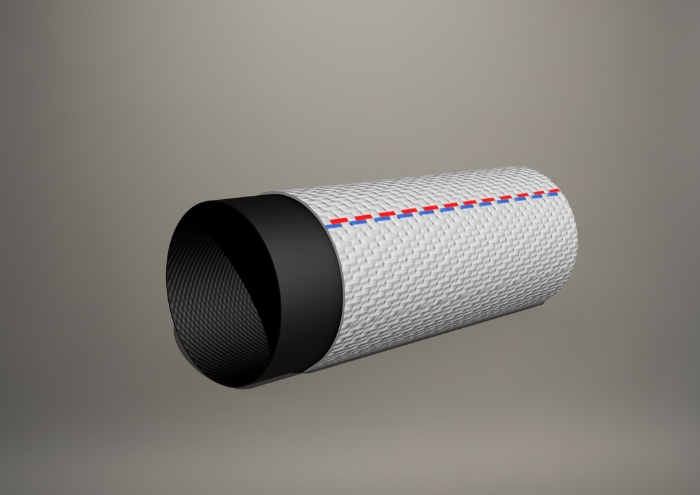

Construction

  • Inner stain:
    • Special shim made of thermoplastic synthetic materials. Minimal pressure loss thanks to its smooth walls.
  • Outer fabric:
    • Jacket made on a circular loom with high-tenacity polyester yarn. Plain weave as standard, twill option upon minimum order. Free from defects such as broken threads, knots, etc.

Benefits

  • Good resistance to abrasion and intensive use by professionals.
  • Very light and flexible hose.
  • Easy to handle and roll.
  • Pressure resistant thanks to its circular loom construction.
  • Inner PU and/or synthetic rubber insert as options.
  • Custom marking under minimum order.
  • Available with various international approvals.

Uses

  • Firefighters and Industry.
  • Construction.
  • Refineries.
  • Army.
  • Airports.
  • Oil vessels and platforms.

Technical Characteristics

DIAMETER WEIGHT
WORKING
PRESSURE​
TEST
PRESSURE​
BURST
PRESSURE​		 CERTIFICATIONS
in. mm. gr/m. bars bars bars
13/4″ 45 245 17 33 >50 NF
23/4″ 70 460 17 33 >50 NF

Documentation

Technical sheet
