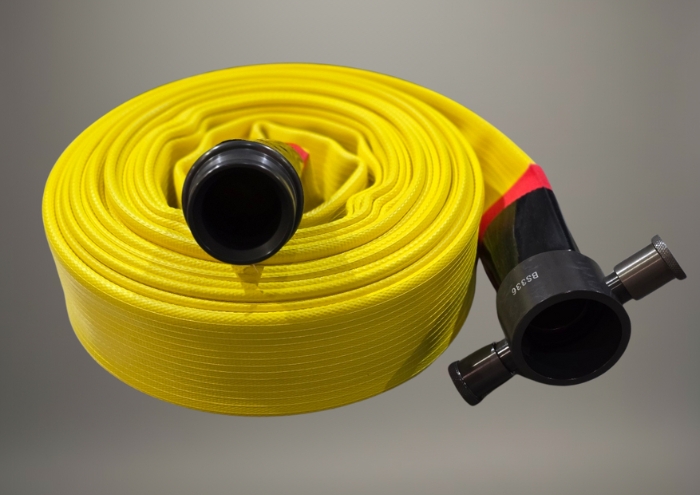

FLEXIGOM® AIR

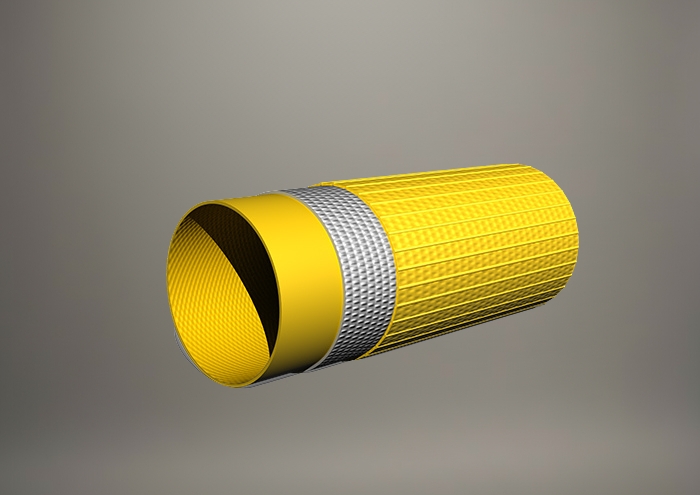

Construction

Inner and outer layer:
- Specially formulated, high-visibility yellow nitrile rubber extruded through circular knitting. Minimal pressure loss thanks to its smooth inner wall. External grooves for improved abrasion resistance and improved handling.
Intermediate textile reinforcement:
- Jacket made on a circular loom with high-tenacity polyester yarn. Free of defects such as broken threads, knots, etc.

Excellent resistance to abrasion and intensive use by professionals.
High resistance to oils, gasoline and a wide range of chemicals.
Very resistant to heat, both contact and radiant heat.
Lightweight and flexible hose, even at low temperatures (-15°C). Easy to handle and roll.
High resistance to breakage thanks to its special textile construction.
No maintenance or drying required.

DIAMETER		WEIGHT	THICKNESS	WORKING PRESSURE	BURST PRESSURE
inches	mm.	gr/m.	mm.	bars	bars
3/4″	20	230	2,20	30	>90
1″	25	250	1,95	30	>90
1^1/4«	32	310	2,00	27	>80
1^1/2«	38	345	1,95	21	>62
1^3/4«	45	410	1,90	21	>62
2″	52	460	2,00	20	>60
2^1/2«	64	600	2,10	17	>52
2^3/4«	70	680	2,30	17	>50
3″	75	790	2,50	17	>50
