FLEXIGOM® EXTRA

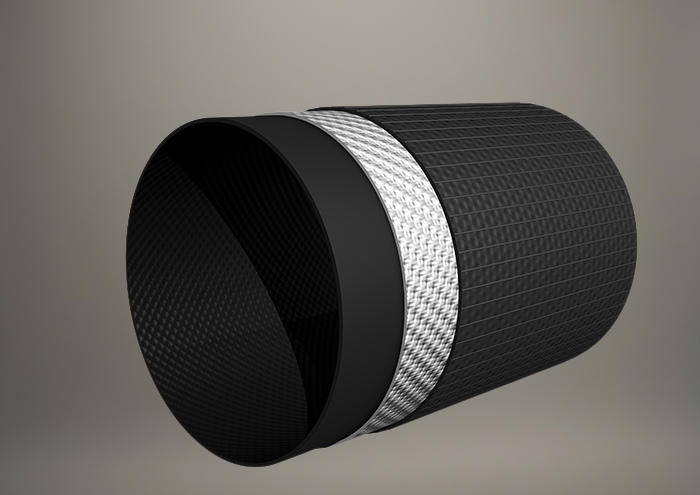

Construction

Inner and outer layer:
- Specially formulated black nitrile rubber extruded through circular knitting. Minimal pressure loss thanks to its smooth inner wall. External grooves for improved abrasion resistance and improved handling.
Intermediate textile reinforcement:
- Jacket made on a circular loom with high-tenacity polyester yarn. Free of defects such as broken threads, knots, etc.

Excellent resistance to abrasion and intensive use by professionals.
High resistance to oils, gasoline and a wide range of chemicals.
Very resistant to heat, both contact and radiant heat.
Lightweight and flexible hose, even at low temperatures (-15°C). Easy to handle and roll.
High resistance to breakage thanks to its special textile construction.
No maintenance or drying required.

DIAMETER		WEIGHT	THICKNESS	WORKING PRESSURE	BURST PRESSURE
in.	mm.	gr/m.	mm.	bars	bars
2″	52	565	2,70	20	>60
2^1/2″	64	720	3,00	17	>52
3″	75	1.020	3,30	17	>50
3^1/2″	90	1.115	3,30	15	>45
4″	102	1.300	3,10	17	>52
4^1/2″	115	1.540	3,10	15	>45
5″	125	1.660	3,10	15	>45
6″	152	2.300	3,30	15	>45
