FLEXIGOM® PU DRAG

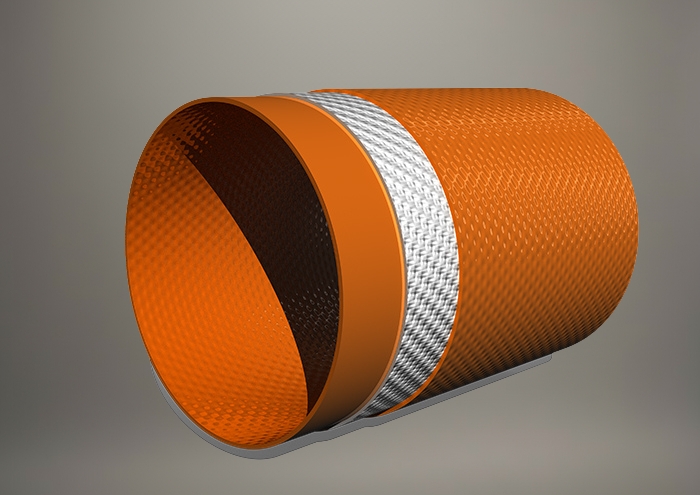

Construction

Inner and outer layer:
- Extruded thermoplastic polyurethane. Minimal pressure loss thanks to its smooth interior wall. Orange color. Glossy, streak-free surface.
Intermediate textile reinforcement:
- Jacket made on a circular loom with high-tenacity polyester yarn. Free of defects such as broken threads, knots, etc.

Excellent resistance to abrasion and intensive use by professionals.
High resistance to oils, gasoline and a wide range of chemicals.
Very resistant to heat, both contact and radiant heat.
Lightweight and flexible hose, even at low temperatures (-15°C). Easy to handle and roll.
High resistance to breakage thanks to its special textile construction.
No maintenance or drying required.

DIAMETER		USE	COLOR	BURST PRESSURE	WORKING PRESSURE	WEIGHT	THICKNESS		TRACTION
in.	mm			bars	bars	kg/m	in.	mm	lbs	kg
4″	102	DRAG	Orange	52	17,5	0,87	0,138	3,5	35274	16000
4,5″	115	DRAG	Orange	42	14	0,98	0,138	3,5	40785	18500
5″	127	DRAG	Orange	42	14	1,70	0,140	3,56	44000	19800
5,5″	140	DRAG	Orange	42	14	1,86	0,145	3,68	45000	20250
6″	153	DRAG	Orange	42	14	2,01	0,15	3,81	60000	27000
7″	178	DRAG	Orange	42	14	2,50	0,155	3,94	70000	31500
