GOMTEX® USA

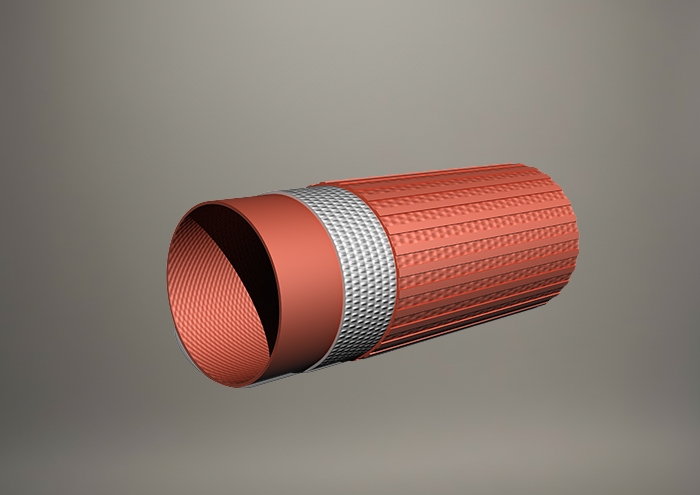

Construction

Inner and outer layer:
- Specially formulated nitrile rubber extruded through circular weave. Minimal pressure loss thanks to its smooth inner wall. High thermal resistance.
  Reinforced grooves for improved abrasion resistance and easier handling.
Intermediate textile reinforcement:
- Jacket made on a circular loom with high-tenacity polyester yarn with break strengths > 62 bar (900 psi). Free from defects such as broken threads, knots, etc.

Excellent resistance to abrasion and intensive use by professionals thanks to its reinforced grooves.
High resistance to oils, gasoline and a wide range of chemicals.
Very resistant to heat, both contact and radiant heat.
Flexible hose even at low temperatures (-15ºC).
High breaking strength > 62 bars (900 psi) thanks to its special textile construction.
No maintenance or drying required.

DIAMETER		WEIGHT	THICKNESS	WORKING PRESSURE	TEST PRESSURE	BURST PRESSURE
in.	mm.	gr/m.	mm.	bars	bars	bars
1″	25	305	2,70	30	60	>90
1^1/2″	38	480	3,10	20	40	>62
1^3/4″	45	500	3,00	20	40	>62
2″	52	590	3,00	20	40	>62
2^1/2″	64	750	3,30	20	40	>62
2^3/4″	70	825	3,50	20	40	>62
3″	75,5	860	3,50	20	40	>62
