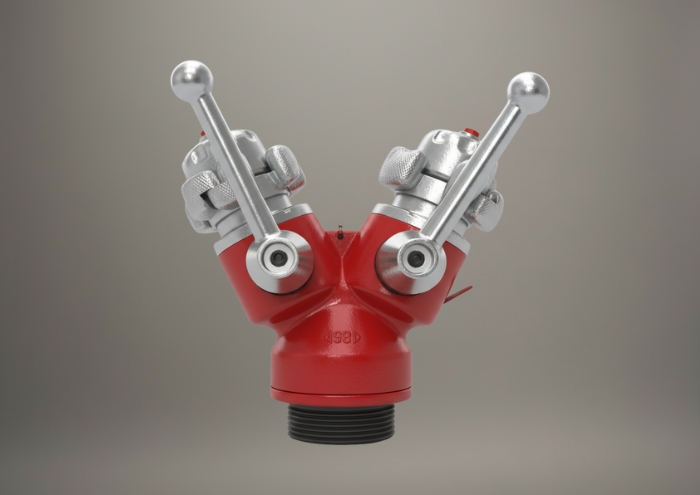

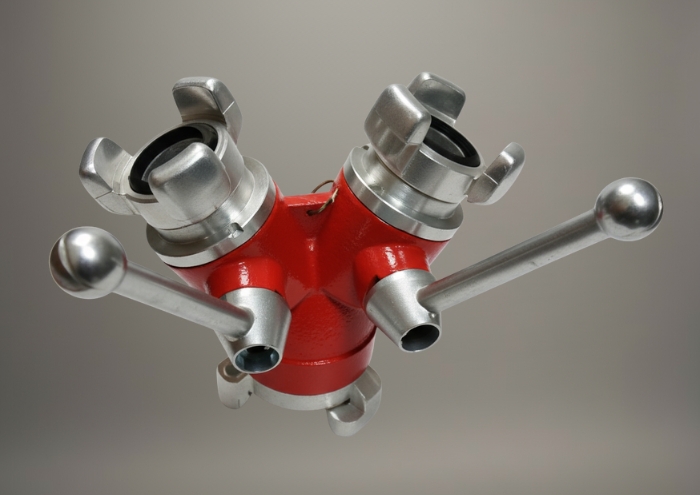

MONPE FORKS

Categories: ,

Description

They allow flow distribution to work interchangeably with one or two hoses.

Aluminum body, painted in red.

Aluminum ball valves.

Brass levers (option 25 mm) and (option 45 mm).

Aluminum levers (option 70 mm).

Test pressure: 20 Kg/cm².

Barcelona type aluminum fittings according to UNE-23400.

Types and characteristics

  • 25 mm: 1″ internal thread input x 2 1″ external thread outputs.
  • 25 mm: 1 ½” x 2 1″ external thread outputs.
  • 45 mm: 1.5″ internal thread input x 2 internal thread outputs 1½».
  • 45 mm: 2 ½” x 2 1 ½” .
  • 70 mm: 3″ internal thread inlet x 2 internal thread outlets 2½».
  • 70 mm: 4″ internal thread inlet x 2 internal thread outlets 2½».

Documentation

Technical sheet
