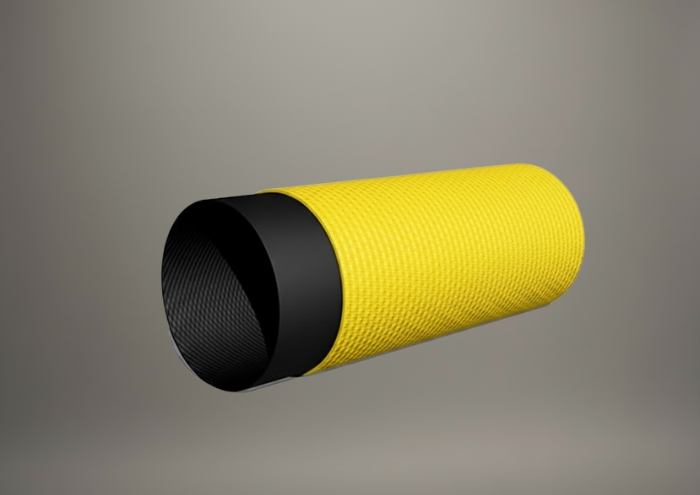

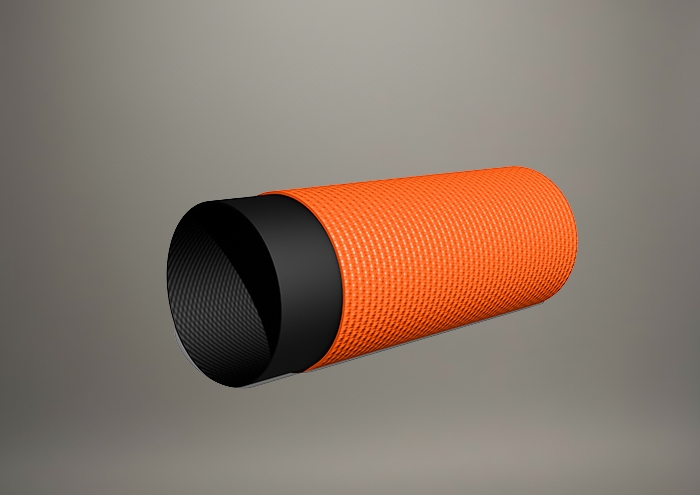

Construction

Stain or inner layer:
- Specially formulated black EPDM inner rubber. High resistance to temperature variations. Minimal pressure loss thanks to its smooth inner wall.
Outer fabric:
- Jacket made on a circular loom with high-tenacity polyester yarn. Twill weave with two stripes along the entire length of the sleeve. Free from defects such as broken threads, knots, etc.
- Color: Red or orange (depending on availability).

Benefits

Lightweight hose, its weight is 240 gr/meter.
Highly flexible hose with a large bending ratio without collapse. Bending radius of 400 mm.
Easy-to-handle hose, easy to move and pull. It slides easily across the floor by one person and has a great turning radius on stairs.
Heavy-duty hose for continuous use in the final outlet section. Its burst pressure exceeding 90 bar ensures safety.

Low pressure loss due to its specially formulated rubber interior. Smooth interior.
Its color makes it stand out from the rest, making it easy to locate.
With a high adhesion exceeding 40 N, it guarantees durability and resistance. Greater layer adhesion results in better aging. It far surpasses the requirements of the NF 61112 standard.

It is supplied with hard-anodized aluminum fittings in red. It is connected using steel wire.

Corrosion-resistant stainless steel. RAL 3001 red color

DIAMETER		WEIGHT	THICKNESS	WORKING PRESSURE	BURST PRESSURE	TRACTION
in.	mm.	gr/m.	mm.	bars	bars	kg
1^1/2″	38	260	2,1	30	90	6000
