SYNTHEDUR®

High-performance hose extruded in a single process.

Categories: , , ,

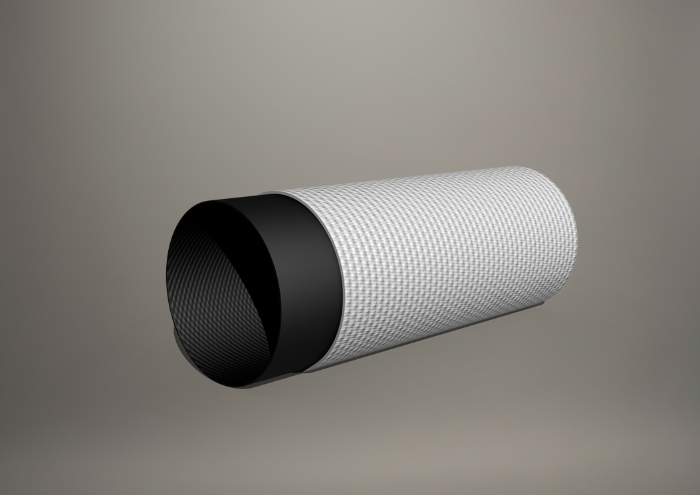

Construction

  • Inner stain:
    • Special slick made from a blend of rubber and synthetic materials.
      Minimal pressure loss thanks to its smooth walls.
  • Outer fabric:
    • Jacket made on a circular loom with high-tenacity polyester yarn.
      Twill weave with standard identification stripes.
      Free of defects such as broken threads, knots, and more.

Benefits

    • Very light and flexible hose even at low temperatures (-15ºC).
    • Easy to handle and roll thanks to its great flexibility.
    • High resistance to the passage of chemicals thanks to the special composition of the inner stain.
    • High resistance to breakage, thanks to its special textile construction.

Uses

    • Fire cabinets.
    • Firefighters and Industry.
    • Construction.
    • Intermediate industrial processes.

Technical Characteristics

DIAMETER WEIGHT THICKNESS
WORKING
PRESSURE​
BURST
PRESSURE​		 CERTIFICATIONS
in. mm. gr/m. mm. bars bars
1″ 25 250 1,95 40 >120 NF
11/4″ 32 310 2,00 27 >80
11/2″ 38 345 1,95 21 >62 UL – BS – AS
12/3″ 42 395 2,10 20 >60
13/4″ 45 410 1,90 21 >62 UL – BS – AS
2″ 52 460 2,00 20 >60 BS – AS
21/4″ 55 470 2,00 17 >52
21/2″ 64 600 2,10 17 >52 UL – BS – AS
23/4″ 70 680 2,30 17 >50 NF – BS
3″ 75 790 2,50 17 >50 UL – BS
31/4″ 80 810 2,25 15 >45
31/2″ 90 930 2,35 15 >45
4″ 102 1.030 2,50 17 >52 UL
41/3″ 110 1.160 2,40 15 >45 NF
41/2″ 115 1.180 2,40 10 >30
5″ 125 1.400 2,70 15 >45 UL
6″ 152 1.650 2,60 14 >42

Documentation

Technical Sheet
