FLEXIGOM® ANTISTATIC

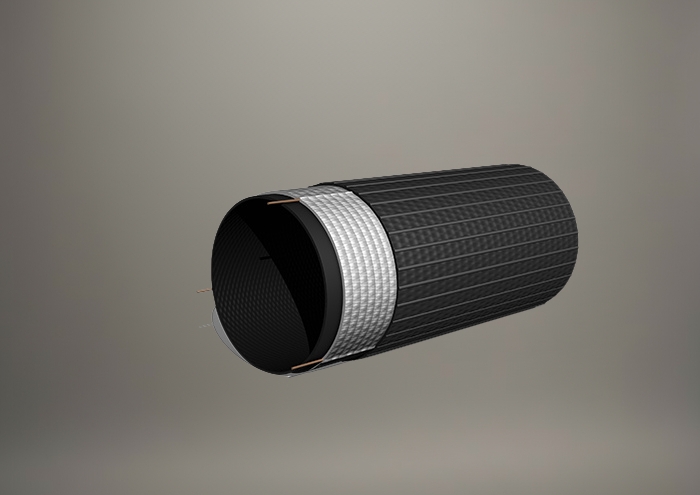

Construction

Inner and outer layer:
- Specially formulated black nitrile rubber extruded through circular knitting. Minimal pressure loss thanks to its smooth inner wall. External grooves for improved abrasion resistance and improved handling.
Intermediate textile reinforcement:
- Jacket made on a circular loom with high-tenacity polyester yarn. Free of defects such as broken threads, knots, etc. Contains three copper wires to make it antistatic.

Excellent resistance to abrasion and intensive use by professionals.
High resistance to oils, gasoline and a wide range of chemicals.
Very resistant to heat, both contact and radiant heat.
Lightweight and flexible hose, even at low temperatures (-15°C). Easy to handle and roll.
High resistance to breakage thanks to its special textile construction.
No maintenance or drying required.

DIAMETER		WEIGHT	THICKNESS	WORKING PRESSURE	BURST PRESSURE
in.	mm.	gr/m.	mm.	bars	bars
^3/4″	20	230	2,4	30	>90
1″	25	275	2,3	30	>90
1^1/2″	38	395	2,7	20	>62
2″	52	510	2,2	20	>60
2^1/2″	64	650	2,4	17	>52
3″	75	830	2,7	17	>50
4″	102	1080	2,7	17	>52
5″	125	1400	2,7	15	<45
