ATLAS®-C-DJ

Double-jacket hose coated with very high abrasion resistance.

Categories: ,

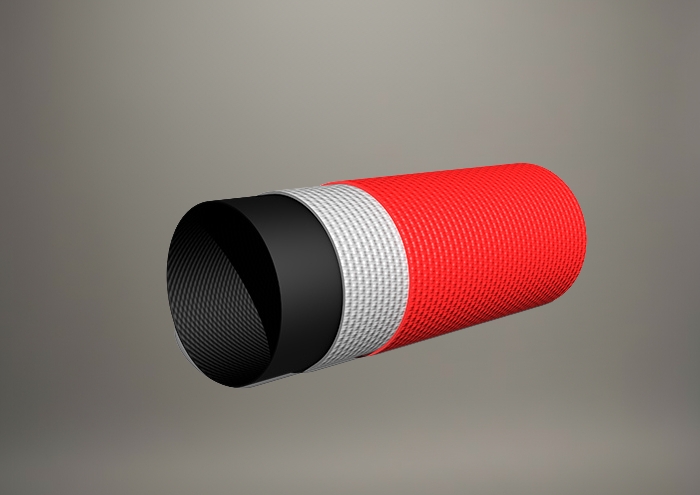

Construction

  • Inner stain:
    • Special slick made of synthetic rubber. Minimal pressure loss thanks to its smooth walls.
  • Intermediate fabric (first jacket):
    • Jacket made on a circular loom with a flat structure and high-tenacity polyester thread.
  • Outer fabric (double jacket):
    • Jacket made on a circular loom with high-tenacity polyester yarn. Reverse weave construction to prevent twisting during use. Reinforced plain weave. Free of defects such as broken threads, knots, etc.
  • Exterior impregnation:
    • Red PU-based emulsion as standard (other colours on minimum order).

Benefits

  • High resistance to breakage thanks to its double jacket construction.
  • Very resistant to abrasion.
  • High resistance to ozone thanks to its outer coating, which also improves abrasion.
  • Easy to roll and handle.
  • Custom marking under minimum order.
  • Available with various international approvals.

Uses

  • Fire extinguishing in very extreme conditions.
  • Heavy industry.
  • Refineries.
  • Marine use on ships and platforms.

Technical Characteristics



DIAMETER WEIGHT
WORKING
PRESSURE​

TEST
PRESSURE​

BURST
PRESSURE​
CERTIFICATIONS
in. mm. gr/m. bars bars bars
1″ 25 240 50 100 >150
11/2″ 38 350 33 67 >100 UL
13/4″ 45 390 33 67 >100
2″ 50 450 30 60 >90
21/2″ 64 640 27 54 >80 UL
3″ 75 750 21 43 >65



Documentation

Technical sheet
