ATLAS®-C ATOXIC YELLOW – Mesa Products

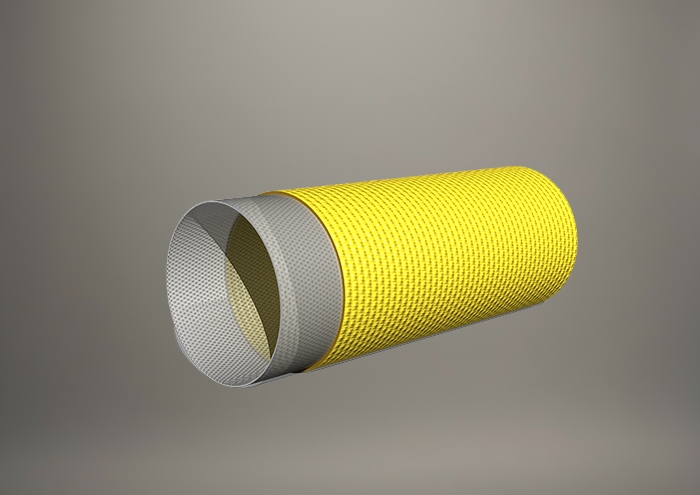

Construction

Inner stain:
- Non-toxic PVC or PU interior seal.
  Formulated to withstand the harshest weather conditions and the passage of the most aggressive liquids.
  Minimal pressure loss thanks to its smooth walls.
Outer fabric:
- Jacket made on a circular loom with high-tenacity polyester yarn. Plain weave free of defects such as broken threads, knots, etc.
Exterior impregnation:
- Yellow PU-based emulsion.

Very light and flexible hose.
Easy to handle and roll.
Excellent resistance to use in salt water, dirty water, etc.
The outer fabric is not degraded by ultraviolet rays or high concentrations of ozone.
Substantially improves its resistance to abrasion and chemicals.
Pressure resistant thanks to its circular loom construction.
Custom marking under minimum order.
Available with various international approvals.

DIAMETER		WEIGHT	WORKING PRESSURE	TEST PRESSURE	BURST PRESSURE
in.	mm.	gr/m.	bars	bars	bars
1″	25	170	30	30	>90
1^1/2″	38	220	18	37	>55
1^2/3″	42	240	18	37	>55
2″	52	290	18	37	>55
2^1/2″	64	400	18	37	>55
2^3/4″	70	430	16	32	>48
3″	75	490	15	30	>45
4″	102	700	15	30	>45
4^1/3″	110	800	13	27	>40
5″	125	1.050	10	20	>30
6″	152	1.400	10	20	>30
