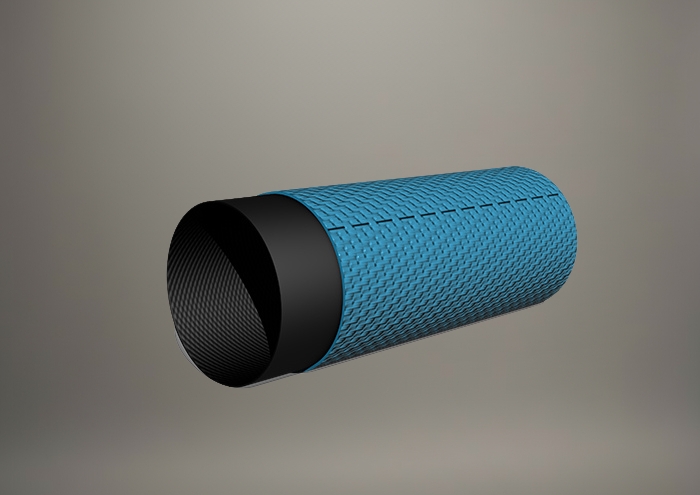

ATLAS® RUBBER TWILL BLUE RF3 THREAD COPPER

Single jacket hose with reinforced twill, 3 copper wires and rubber seal, ideal for high-pressure compressors.

Categories: ,

Construction

  • Inner stain:
    • Special slick made of a rubber compound. Minimal pressure loss thanks to its smooth walls.
  • Outer fabric:
    • Jacket made on a circular loom with high-tenacity polyester yarn. Twill weave. Free of defects such as broken threads, knots, etc.
      Incorporates three copper wires.
  • Exterior impregnation:
    • Blue PU-based emulsion.

Benefits

  • Antistatic properties according to ISI2883:1980 and 2878:1987 standards.
  • Easy to handle and roll.
  • High resistance to the passage of chemicals thanks to the special composition of the inner stain.
  • High resistance to ozone thanks to its outer coating, which also improves abrasion.
  • Pressure resistant thanks to its circular loom construction.

Uses

  • Loading and unloading of fuel, gasoline, etc.…
  • Tank cleaning.
  • Firefighting environments and deflagration hazards.
  • Pumping chemicals.
  • Transfers and bypasses.
  • Refineries.

Technical Characteristics



DIAMETER WEIGHT
WORKING
PRESSURE​

TEST
PRESSURE​

BURST
PRESSURE​
in. mm. gr/m. bars bars bars
2″ 52 510 40 80 >120
