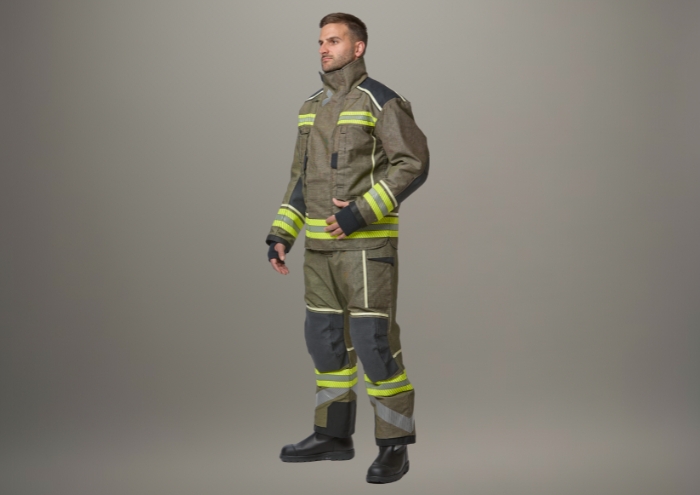

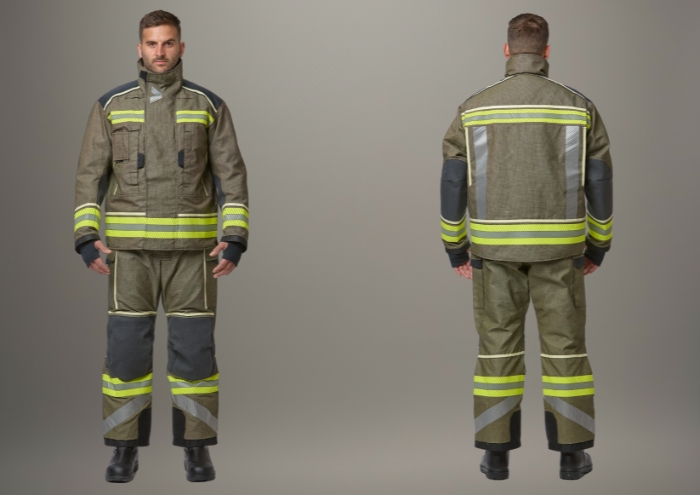

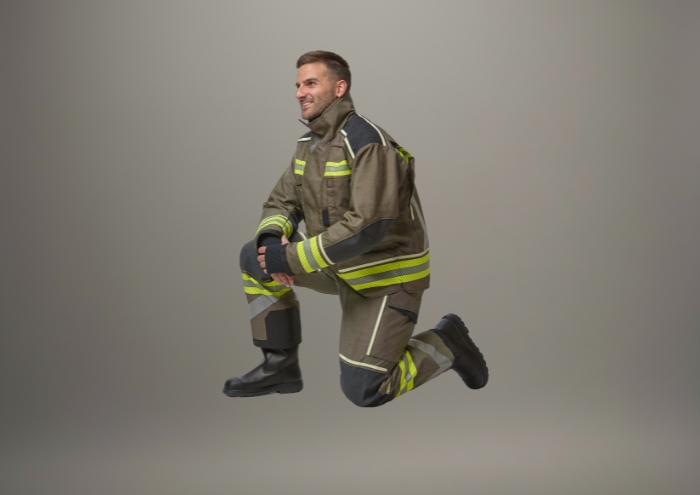

FIRE MAX LIGHT MODEL
REF 32118

Outfit consisting of a 2/4 jacket and bib-style trousers.

Descripción de MODELO FIRE MAX LIGHTREF 32118

Very lightweight equipment, with high mobility, where perspiration requirements are high, great mechanical protection.

Adequate thermal protection.

It stands out for its high resistance to tearing and traction.

Great balance between comfort and protection.

Color: Gold

FIRE MAX® LIGHT

CERTIFIED AFTER 40 WASH AND DRY CYCLES

Aplicaciones de MODELO FIRE MAX LIGHTREF 32118

PPE consisting of a jacket and trousers designed to protect the user's entire body, excluding the head, hands, and feet. It is designed to protect against risks encountered in firefighting operations and related activities where there is a risk of heat and/or flames, and against the accumulation of electrostatic charges to prevent incendiary discharges.

Normativa de MODELO FIRE MAX LIGHTREF 32118

  • EN ISO13688:2013 + EN ISO13688:2013/A1:2021.
  • EN469:2020 and EN1149-5:2018 according to standard EN 1149-3:2004

Descripción de la chaqueta de MODELO FIRE MAX LIGHTREF 32118

Two-quarter length jacket, body constructed with a front and back yoke, consisting of two front pieces and one back piece. The back is made with two symmetrical side pleats. Sleeves with pre-shaped elbows and gussets at the armpits, ergonomically designed for fire service work.

Reinforcements at the elbows with a padded FR inner fabric and fire-retardant neoprene/kevlar® at the cuff of the jacket.

It will fasten at the front with a double closure, using a high-resistance and fire-resistant zipper, of the TOP OPEN type; DOUBLE CURSOR or SIMPLE, hidden by a flap and velcro.

The jacket features two Napoleon-style external pockets on both chests, an internal zippered pocket on the left side parallel to the lapel for harness access, and two lower pockets with flaps and Velcro closures. A radio pocket and a flashlight attachment pocket can be added.

The sleeve ends in an elastic Nomex® knit cuff. The cuff incorporates a thumbhole to prevent the garment from shifting.

The jacket's collar is designed to protect the face and neck without hindering vision and movement.

The jacket incorporates 3M™ triple reflective material of 50 and 76 mm sewn or heat-welded and 3M™ gray 50 mm heat-welded reflective material on the front, back, and sleeve.

The upper back will feature the name of the Fire Intervention Service printed in 3M™ reflective material.

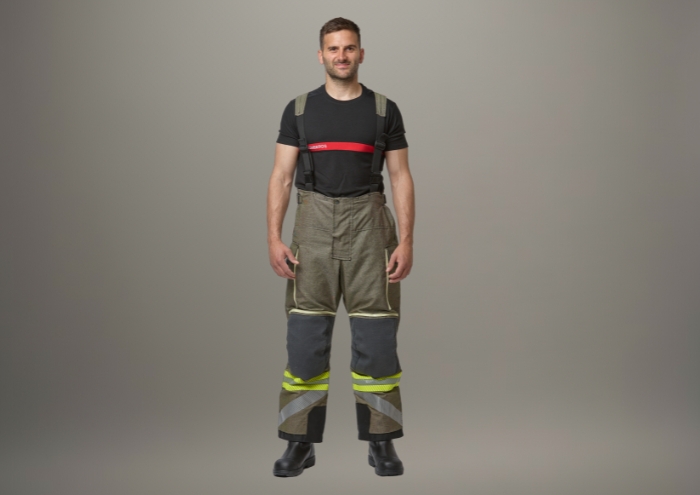

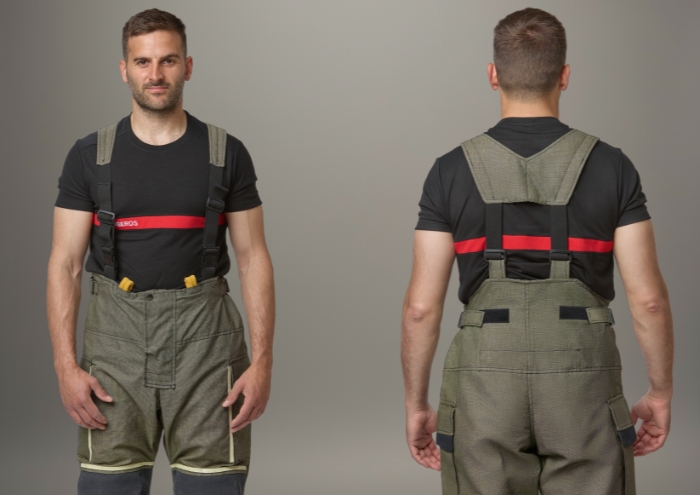

Descripción del cubre pantalón de MODELO FIRE MAX LIGHTREF 32118

High-cut bib-style over-trousers. They have the same layers as the jacket. The bib is long enough to provide an overlap of at least 30 cm when worn with the
jacket. A gusset at the crotch allows for greater freedom of movement.

It features a fly with a fire-resistant zipper and a Velcro flap. The waist is adjustable at the sides using an outer fabric, drawstring, and Velcro.

Each leg features triple reflective material around the bottom of each leg and vertically on the outside of each 50mm and/or 76mm leg from the 3M™ brand.

It incorporates highly resistant, adjustable elastic straps that unfasten quickly at the front and back for easy replacement.

The inner lining of the lower part will be made of anti-friction and moisture-wicking fabric to prevent water from seeping in. The outer part will be reinforced with fire-retardant neoprene with a Kevlar® base.

Pre-shaped knee with clips for increased mobility. Exterior with silicone-coated neoprene reinforcement on a 100% aramid knitted base in black, with an inner padding of FR foam encapsulated with the outer fabric that reduces pressure and impacts on the user.

It has two back gusseted patch pockets with drainage holes.

OPTION:

  • Urban model seat and restraint harness. Certified EN 813 and EN 358. An upper part can also be added which, together with the lower part, forms a fall arrest harness according to EN 361.
  • Full harness, mod. Fire Pro, certified EN 813, EN 358 and EN 361.
  • Washable integrated harness, mod. Fire Clean certified EN 813 and EN 361.

Standard color: Gold

Características técnicas de MODELO FIRE MAX LIGHTREF 32118

Outer fabric:

  • PBI® GOLD MAX®
  • With 36% PBI® or Polibenzimidazole, 62% para-aramid, + 2% antistatic fibers.
  • Weight: 205 gr/m²
  • Structure: Flat, TWILL 2 X 1
  • Finish that repels the penetration of liquid chemicals.

Membrane:

  • Two-component PFTE laminated to a 100% Stedfast® aramidae base. Ref: STEDAIR 3000e
  • Weight: 145 (±10 gr/m²)

It provides protection against water penetration while simultaneously allowing water vapor to escape. This membrane is notable for its high resistance to:

Resistance to liquid penetration:

    • ASTM F903 Test
      • AFFF (3%)
      • Battery acid
      • Hydraulic fluid
      • Gasoline
      • Chlorine

Resistance to virus penetration:

    • Blood resistance – ASTM F1670
    • Resistance to the passage of bloodborne pathogens – ASTM F 1671

Inner Lining:

  • 65% meta-aramid, 20% Viscose Fr filament, 1% antistatic and 14% para-aramid.
  • Weight: 165 gr/m²

AIR SPACER® spacer system. Smooth, comfortable, low-friction lining.

Color: Gold.

Tallaje de MODELO FIRE MAX LIGHTREF 32118

INTERVENTION JACKET
SIZE CHEST CIRCUMFERENCE HEIGHT
46 (XXXS) 88 – 92 160 – 170
48 (XXS) 92 – 96
50 (XS) 96 – 100
52 (S) 100 – 104 170 – 182
54 (M) 104 – 108
56 (L) 108 – 112 182 – 188
58 (XL) 112 – 116
60 (XXL) 116 – 120 188 – 194
62 (XXXL) 120 – 124



FIRE MAX LIGHT MODEL<br>REF 32118

INTERVENTION BAG
SIZE WAIST HEIGHT
46 (XXXS) 84 – 88 160 – 170
48 (XXS) 88 – 92
50 (XS) 92 – 96 170 – 182
52 (S) 96 – 100
54 (M) 100 – 104 182 – 188
56 (L) 104 – 108
58 (XL) 108 – 112 188 – 194
60 (XXL) 112 – 116

Documentación de MODELO FIRE MAX LIGHTREF 32118

Gold metallic PDF file icon with download arrow

Technical sheet
