Descripción de MODELO FIRE MAX LPREF 32119
PBI® LP is the new and revolutionary PBI® fiber that maximizes flame and open-tear resistance in super-lightweight intervention garments.
The PBI® polymer chain has been reinforced, allowing us to achieve lighter garments with increased flame and tear resistance.
Its decomposition temperature is 815ºC and we have more than 50 seconds in the “TEST DYNAMIC FLAME” test to reach tissue rupture.
The FIRE MAX® LP intervention model features this fiber in the composition of the outer fabric and its weight is 180 gr/m². It is accompanied by the Stedfast™ PTFE-bi-component membrane on an aramid base.
Its inner lining stands out for its exceptional comfort and smooth feel against the skin, thanks to the natural viscose FR fiber and its continuous filament construction. We continue to utilize the Air Spacer® system, which helps create a larger air chamber. We can confidently say that we have achieved one of the lightest garments on the market, offering even greater mobility and extraordinary breathability, along with excellent mechanical and thermal protection.
If you want lightweight equipment with great mobility and breathability of less than 12 m² Pa/W, as well as great protection and thermal break, while always maintaining mechanical protection well above the standard.
Standard color: Gold (golden, the color of the fibers).
FIRE MAX® LP
CERTIFIED AFTER 40 WASH AND DRY CYCLES
Aplicaciones de MODELO FIRE MAX LPREF 32119

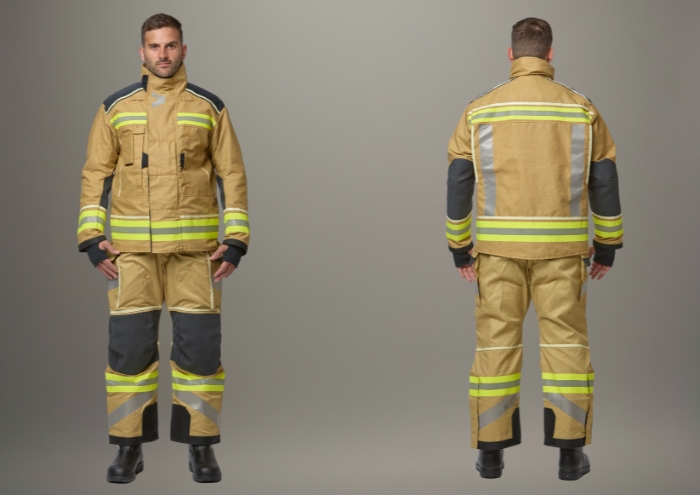

PPE consisting of a jacket and trousers designed to protect the user's entire body, excluding the head, hands, and feet. It is designed to protect against risks encountered in firefighting operations and related activities where there is a risk of heat and/or flames, and against the accumulation of electrostatic charges to prevent incendiary discharges.

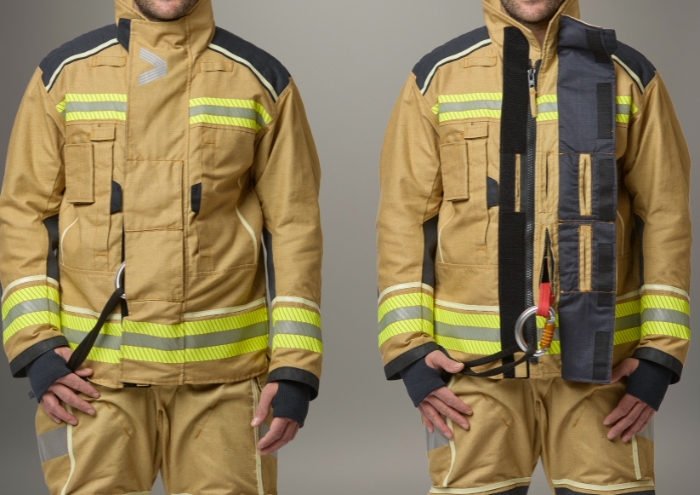

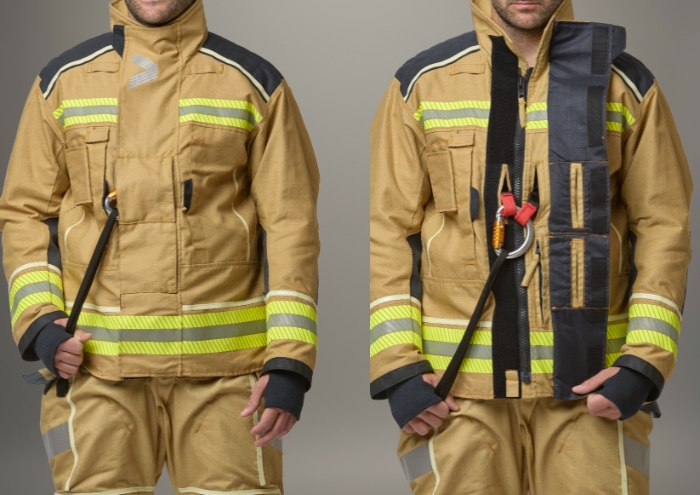

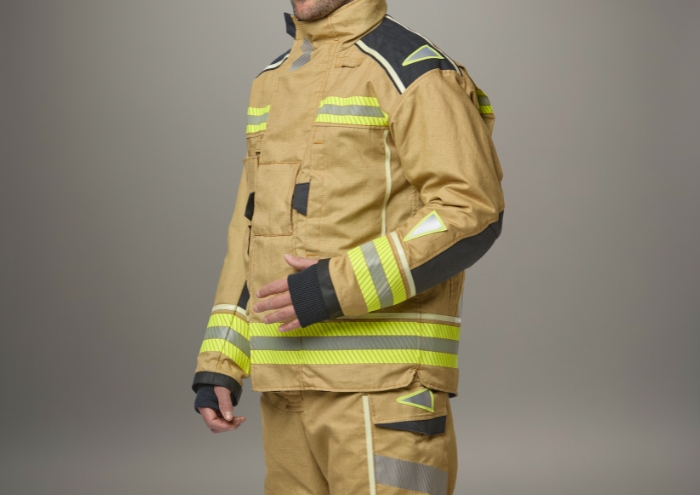

Descripción de la chaqueta de MODELO FIRE MAX LPREF 32119
We adapt to the budgets and needs of our customers.
Two-quarter length jacket, body constructed with a front and back yoke, consisting of two front pieces and one back piece. The back is made with two symmetrical side pleats. Sleeves with pre-shaped elbows and gussets at the armpits, ergonomically designed for fire service work.
Reinforcements at the elbows with a padded FR inner fabric and fire-retardant neoprene/kevlar® at the cuff of the jacket.
It will fasten at the front with a double closure, using a heavy-duty, fire-resistant zipper, either top-open, double-slider, or single-slider. It will be concealed by a flap and Velcro.
The jacket features two Napoleon-style external pockets on both chests, an internal zippered pocket on the left side parallel to the lapel for harness access, and two lower pockets with flaps and Velcro closures. A radio pocket and a flashlight attachment pocket can be added.
The sleeve ends in an elastic Nomex® knit cuff. The cuff incorporates a thumbhole to prevent the garment from shifting.
The jacket's collar is designed to protect the face and neck without hindering vision and movement.
The jacket incorporates 3M™ triple reflective material of 50 and 76 mm sewn or heat-welded and 3M™ gray 50 mm heat-welded reflective material on the front, back and sleeve.
The upper back will feature the name of the Fire Intervention Service printed in 3M™ reflective material.
It is equipped with a codpiece.

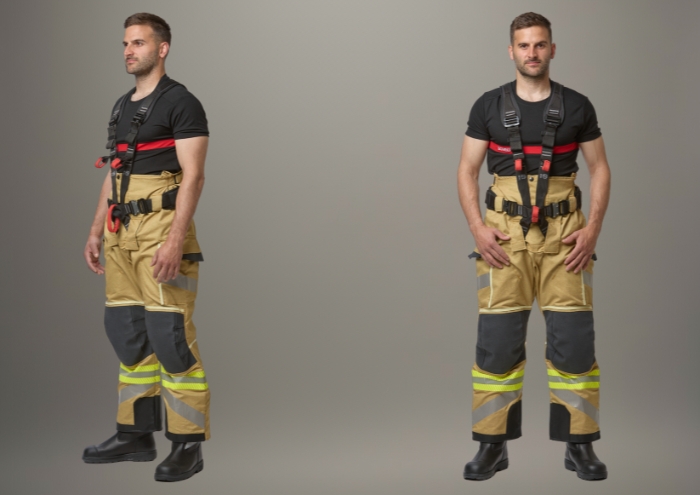

Descripción del cubre pantalón de MODELO FIRE MAX LPREF 32119
High-cut bib-style over-trousers. They have the same layers as the jacket. The bib is long enough to provide an overlap of at least 30 cm when worn with the
jacket. A gusset at the crotch allows for greater freedom of movement.
It features a fly with a fire-resistant zipper and a Velcro flap. The waist is adjustable at the sides using an outer fabric, drawstring, and Velcro.
Each leg has triple reflective material around the bottom of each leg and diagonally along the outer part of each 50 mm and/or 76 mm leg of the 3M™ brand.
It incorporates highly resistant, adjustable elastic straps that unfasten quickly at the front and back for easy replacement.
The inner lining of the lower part will be made of anti-friction and moisture-wicking fabric to prevent water from seeping in. The outer part will be reinforced with fire-retardant neoprene with a Kevlar® base.
Pre-shaped knee for increased mobility. Exterior with silicone-coated neoprene reinforcement on a 100% aramid knitted base in black at the knees, with an interior padding of FR foam encapsulated with the same outer fabric that reduces pressure and impacts on the user.
It has two back gusseted patch pockets with drainage holes.
OPTION:

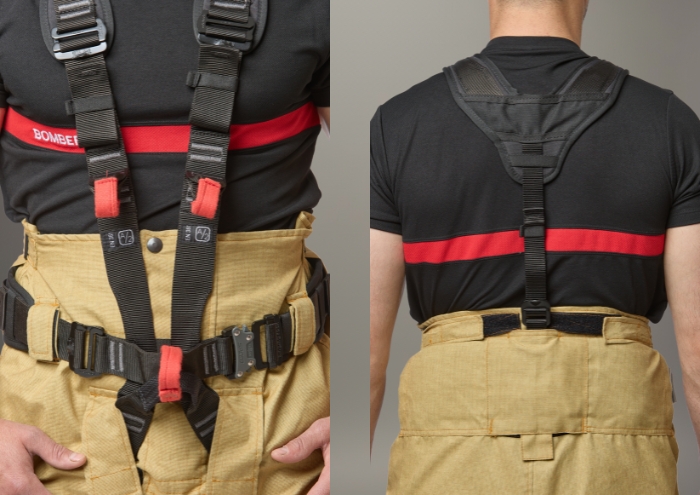

- Urban model seat and restraint harness. Certified EN 813 and EN 358. An upper part can also be added which, together with the lower part, forms a fall arrest harness according to EN 361.
- Full harness, mod. Fire Pro, certified EN 813, EN 358 and EN 361.
- Washable integrated harness, mod. Fire Clean certified EN 813 and EN 361.
Características técnicas de MODELO FIRE MAX LPREF 32119
Outer fabric:
- PBI® MAX LP™
- 36% PBI® LP, 62% para-aramid, + 2% p140 antistatic fiber
- Weight: 180 gr/m²
- Finish that repels the penetration of liquid chemicals, oils and hydrocarbons.
- Standard color: Gold (golden, the color of the fibers).
Membrane:
- Stedfast® two-component PTFE laminated to a 100% meta-aramid/para-aramid base with 3D air chamber.
- Weight: 125 gr/m²
- Complies with EN469, AS 4967 and Oekotex Standard 100.
- It provides protection against water penetration while simultaneously allowing water vapor to escape. This membrane is notable for its high resistance to:
Resistance to liquid penetration ISO 16604
Resistance to virus penetration:
-
- Blood resistance – ASTM F1670
- Resistance to the passage of bloodborne pathogens – ASTM F1671
Inner Lining:
- 59% meta-aramid, 30% Viscose Fr filament, 10% para-aramid and 1% antistatic.
- Weight: 165 gr/m²
- AIR SPACER® spacer system
- Smooth, pleasant, low-friction lining.
