FLEXIGOM®

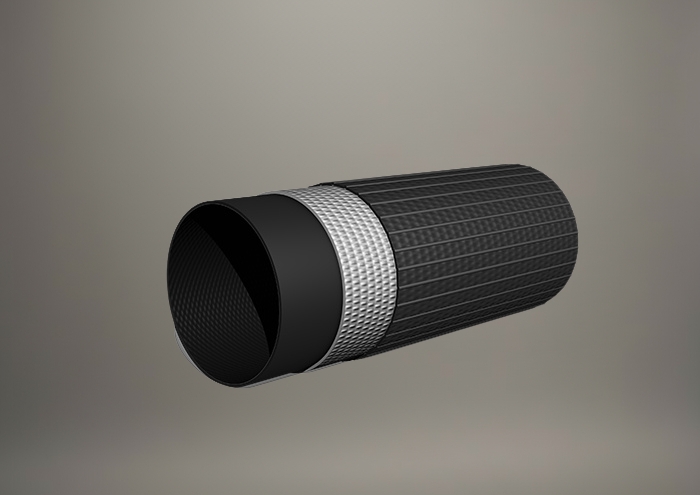

Construction

Inner and outer layer:
- Specially formulated black nitrile rubber extruded through circular knitting. Minimal pressure loss thanks to its smooth inner wall. External grooves for improved abrasion resistance and improved handling.
Intermediate textile reinforcement:
- Jacket made on a circular loom with high-tenacity polyester yarn. Free of defects such as broken threads, knots, etc.

Excellent resistance to abrasion and intensive use by professionals.
High resistance to oils, gasoline and a wide range of chemicals.
Very resistant to heat, both contact and radiant heat.
Lightweight and flexible hose, even at low temperatures (-15°C). Easy to handle and roll.
High resistance to breakage thanks to its special textile construction.
No maintenance or drying required.

DIAMETER		WEIGHT	THICKNESS	WORKING PRESSURE	BURST PRESSURE
in.	mm.	gr/m.	mm.	bars	bars
^3/4″	20	230	2,20	30	>90
^7/8″	22	240	2,20	30	>90
1″	25	250	1,95	30	>90
1^1/4″	32	310	2,00	27	>80
1^1/2″	38	345	1,95	21	>62
1^2/3″	42	395	2,10	20	>60
1^3/4″	45	410	1,90	21	>62
2″	52	460	2,00	20	>60
2^1/6″	55	470	2,00	17	>52
2^1/2″	64	600	2,10	17	>52
2^3/4″	70	680	2,30	17	>50
3″	75	790	2,50	17	>50
3^1/4″	80	810	2,25	15	>45
3^1/2″	90	930	2,35	15	>45
4″	102	1.030	2,50	17	>52
4^1/3″	110	1.160	2,40	15	>45
4^1/2″	115	1.180	2,40	10	>30
5″	125	1.400	2,70	15	>45
6″	152	1.650	2,60	14	>42
8″	204	3.100	3,80	14	>42
10″	254	4.000	3,90	10	>30
12″	304	4.700	3,90	8	>25
