FLEXIGOM® PU GP

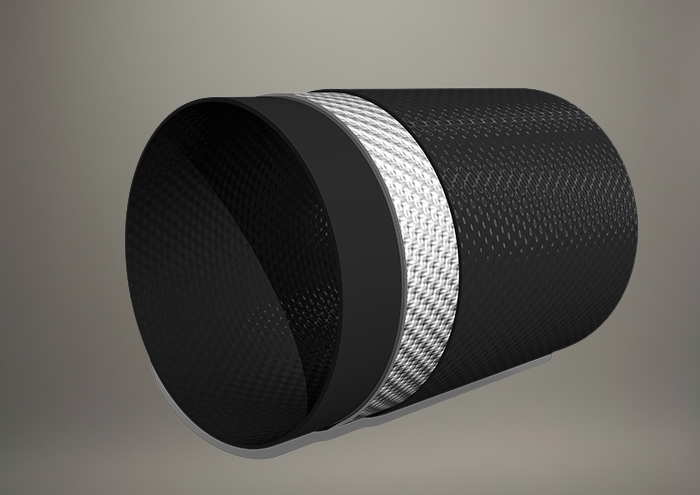

Construction

Inner and outer layer:
- Extruded thermoplastic polyurethane. Minimal pressure loss thanks to its smooth interior wall. Black color. Glossy, streak-free surface.
Intermediate textile reinforcement:
- Jacket made on a circular loom with high-tenacity polyester yarn. Free of defects such as broken threads, knots, etc.

Excellent resistance to abrasion and intensive use by professionals.
High resistance to oils, gasoline and a wide range of chemicals.
Very resistant to heat, both contact and radiant heat.
Lightweight and flexible hose, even at low temperatures (-15°C). Easy to handle and roll.
High resistance to breakage thanks to its special textile construction.
No maintenance or drying required.

DIAMETER		USE	COLOR	BURST PRESSURE	WORKING PRESSURE	WEIGHT	THICKNESS		TRACTION
in.	mm			bars	bars	kg/m	in.	mm	lbs	kg
2″	51	GP	Black	70	23	0,52	0,10	2,60	13448	6100
3″	76	GP	Black	48	16	0,78	0,11	2,80	19180	8700
4″	102	GP	Black	52	17,5	1,04	0,11	2,79	27000	12150
5″	127	GP	Black	42	14	1,41	0,12	3,05	35000	15750
8″	203	GP	Black	42	14	2,97	0,15	3,81	80000	36000
10″	254	GP	Black	42	14	4,30	0,16	4,06	110000	49500
12″	308	GP	Black	32	11	5,25	0,14	3,60	126724	57481
