GOMDUR® 4K

Four-layer hose extruded in a single process. Reinforced with para-aramid. High thermal and abrasion resistance.

Categories: , , ,

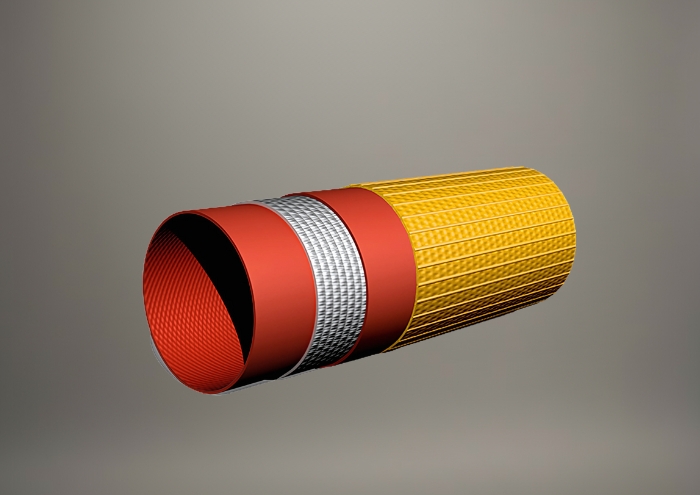

Construction

  • Inner and outer layer:
    • Specially formulated red nitrile rubber extruded through circular knitting. Minimal pressure loss thanks to its smooth inner wall. High thermal resistance.
  • Intermediate textile reinforcement:
    • Jacket made on a circular loom with high-tenacity polyester yarn. Free of defects such as broken threads, knots, etc.
  • Outer layer (4th layer):
    • Highly visible yellow rubber specially formulated with para-aramid fibers to provide high resistance to abrasion, contact temperature, ambient temperature, and chemicals. With exterior grooves for improved abrasion resistance and easier handling.

Benefits

  • Very resistant to heat, both contact and radiant heat.
  • Excellent resistance to abrasion and intensive use by professionals.
  • High resistance to oils, gasoline and a wide range of chemicals.
  • Flexible hose even at low temperatures (-15ºC).
  • High resistance to breakage thanks to its special textile construction.
  • No maintenance or drying required.
  • Available with different international certifications.

Uses

  • Forest.
  • Firefighting, firefighters and industry.
  • Refineries and heavy industry.
  • Airports.
  • Structural and urban fires.

Technical Characteristics

DIAMETER WEIGHT THICKNESS
WORKING
PRESSURE​
TEST
PRESSURE​
BURST
PRESSURE​		 CERTIFICATIONS
in. mm. gr/m. mm. bars bars bars
1″ 25 260 2,30 30 60 >120
11/2″ 38 385 2,25 21 45 >62 UL
13/4″ 45 420 2,10 21 45 >62
2″ 52 550 2,30 20 40 >60
21/2″ 64 680 2,30 17 35 >52 UL
23/4″ 70 700 2,30 17 35 >50
3″ 75 780 2,30 17 35 >50

Documentation

Technical sheet
