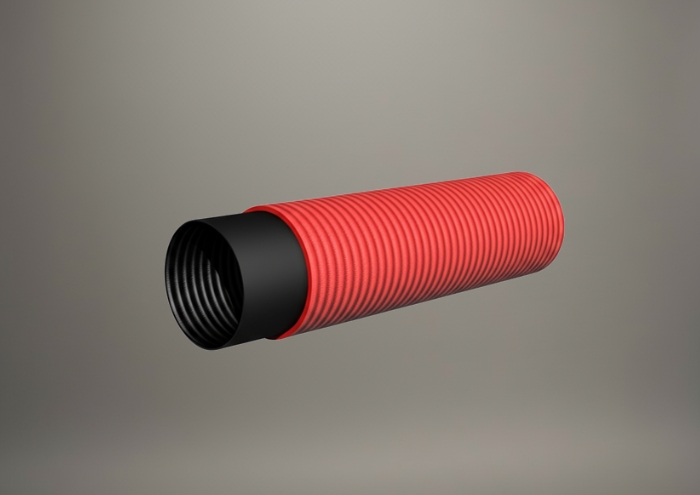

GUMTEX®-C

Semi-rigid coated hose thanks to its flexible monofilament, giving it great resistance to pressure and flexibility.

Construction

  • Inner stain:
    • Special slick made from a blend of rubber and synthetic materials.
      Minimal pressure loss thanks to its smooth walls.
  • Outer fabric:
    • Jacket manufactured on a circular loom with high-tenacity polyester yarn, including monofilament to prevent the hose from collapsing. Plain weave as standard. Free of defects such as broken threads, knots, etc.
  • Exterior impregnation:
    • Red PU-based emulsion as standard (other colours on minimum order).

Benefits

  • Very light and flexible hose.
  • Easy to handle and roll.
  • Very fast glide.
  • Minimal loss of flow.
  • High resistance to the passage of chemicals thanks to the special composition of the inner stain.
  • High resistance to breakage thanks to its special textile construction.
  • High resistance to ozone thanks to its outer coating, which also improves abrasion.

Uses

  • Fire cabinets.
  • First aid reels.
  • Compressed air.
  • Intermediate industrial processes.

Technical Characteristics



DIAMETER WEIGHT THICKNESS Radius
of
curvature

WORKING
PRESSURE​

TEST
PRESSURE​

BURST
PRESSURE​
in. mm. gr/m. mm. cm. (15 bars) bars bars bars
3/4″ 20 250 2,00 50 30 60 >90
1″ 25 350 2,00 60 30 60 >90
1 1/4″ 32 500 2,00 70 15 30 >45
